Explore our flagship heavy-duty storage configurations, high-density automated shuttle architectures, and warehouse safety components manufactured under rigorous finite element analysis (FEA) and continuous cold roll-forming controls.
Heavy-gauge cold-rolled upright frames, multi-claw beam connectors, and 100% SKU selectivity compatible with counterbalance, reach trucks, and VNA stackers.
High-density polyethylene construction offering dynamic hygienic resistance, 4-way forklift entry, anti-slip surface grommets, and nestable freight cost reduction.
Precision rivet interlocking design for tool-free assembly, anti-corrosion epoxy electro-deposition, and adjustable shelf pitches for retail backroom and distribution centers.
Industrial-grade polymer CCTV mount and cable protection enclosure engineered for high-bay warehouse security monitoring and automated facility management.
High-visibility safety steel and elastic composite polymer guards that divert forklift impacts, preventing upright frame buckling and structural warehouse collapse.
Engineered roller tracks equipped with centrifugal speed controllers, automatic separation brakes, and sloped rails for seamless First-In, First-Out throughput.
Space-saving 'A' and 'L' frame nesting architecture, heavy-duty polyurethane castors, and high tensile steel mesh walls for retail replenishment and cross-dock transit.
Heavy-gauge step beams with galvanized steel drop-in shelves or high-density fibreboard panels, tailored for manual carton picking, spares, and archive depots.
As a premier Chinese heavy-duty racking factory and international exporter, our manufacturing infrastructure bridges metallurgical purity, automated roll-forming tolerances, and certified structural safety for tier-1 global enterprises.
We source exclusively from top-tier state-owned mills (Baosteel, Shougang). Every batch of Q235B and Q355B cold-rolled coil steel undergoes spectral chemical analysis and yield-strength tensile testing (yielding ≥ 355 MPa) to prevent sudden structural deformation under sustained seismic and operational loads.
Our facility operates 18 automated continuous roll-forming lines featuring up to 24 progressive roller stations. This guarantees micro-level dimensional consistency for omega-profile upright columns and box-beam members, eliminating residual mechanical stress that leads to column twisting.
Upright profiles and load beams receive an automated degreasing, acid descaling, phosphating, and deionized rinsing process prior to GEMA electrostatic powder application. Cured at 200°C, the dry film thickness (60-90μm) withstands 500-hour salt spray tests without flaking or corrosion.
Engineering layouts adhere strictly to European FEM 10.2.02, American RMI MH16.1, and Australian AS4084-2012 codes. Finite Element Analysis (FEA) simulates elastic-plastic beam-column connection behavior, second-order sway effects, and seismic ground accelerations.
Automated Panasonic robotic arm cells perform high-penetration CO2 shielded welding on beam connector plates. Our proprietary 3-, 4-, and 5-claw interlocking connector hooks distribute moment forces efficiently, backed by auto-engaging spring safety pins.
From custom containerization utilizing anti-abrasion packaging to comprehensive site surveys, layout CAD/BIM modeling, and dispatching certified installation superintendents across Southeast Asia, Europe, and the Americas, we guarantee zero-defect site handovers.
Selecting an industrial storage structure requires a calculated balance between floor surface utilization, SKU access selectivity, material handling equipment (MHE) capital expenditures, and warehouse cycle times.
The Radio Shuttle system is an autonomous deep-lane storage architecture where a battery-powered motorized carrier transports palletized loads along specialized internal guide rails inside deep storage channels. Forklifts remain confined to the perimeter aisle face, cutting operator travel time by up to 50%.
Heavy duty selective pallet racking remains the bedrock of global logistics. Manufactured from heavy-duty upright frames and roll-formed box beams, it provides direct, unhindered accessibility to every single pallet position. When configured as Double Deep racking with pantograph reach trucks, storage density surges by 30%.

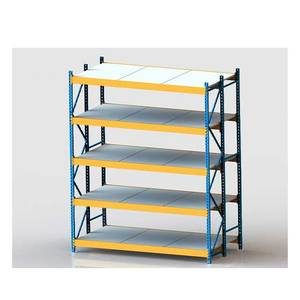

For hand-loaded e-commerce fulfillment hubs, spare parts distribution, and automotive assembly lines, medium-duty longspan shelving bridges the gap between light rivet racks and heavy pallet systems. When integrated with rack-supported mezzanine platforms, usable square footage multiplies without building expansion.
| System Architecture | Structural Steel Grade | Typical Beam Load (UDL) | Floor Space Utilization | Selectivity Ratio | Target Material Handling |
|---|---|---|---|---|---|
| Selective Pallet Racking | Q235B / Q355B Cold Rolled | 1,000 kg – 4,500 kg / level | Approx. 35% – 40% | 100% Immediate | Counterbalance, Reach Truck, VNA |
| Very Narrow Aisle (VNA) | Q355B High-Tensile Steel | 1,500 kg – 4,000 kg / level | Approx. 50% – 60% | 100% Immediate | Guided VNA Man-up / Man-down Turret |
| Drive-In / Drive-Thru | Q235B Structural Section | 800 kg – 1,500 kg / pallet | Approx. 65% – 75% | Low (Bulk LIFO / FIFO) | Standard Counterbalance Forklift |
| Radio Shuttle Automation | Q355B Galvanized Rail + Steel | 500 kg – 2,000 kg / pallet | Approx. 75% – 85% | Channel Selective (FIFO/FILO) | Automated Shuttle + Reach Truck |
| Heavy Duty Mezzanine | Hot-Rolled H-Beam & Q235B | 300 kg – 1,000 kg / m² floor | 100% Vertical Doubling | 100% Manual Access | Trolleys, Pallet Jacks, Vertical Lifts |
Global intralogistics procurement is transitioning from buying commoditized tonnage toward lifecycle value engineering, automated compatibility, and rigorous ESG carbon disclosure. Supply chain leaders must factor in these key procurement evolutions.
Traditional heavy racking is evolving into hybrid structures configured for AMR and Automated Storage and Retrieval System (ASRS) interoperability. Floor-level pick tunnels, reinforced baseplates for dynamic high-frequency robot travel, and precision guide-flange tolerances are becoming mandatory engineering specs for modern fulfillment hubs.
Multinational procurement mandates (particularly in the EU and North America) now evaluate Environmental Product Declarations (EPD). Chinese manufacturing facilities utilizing electric arc furnace (EAF) recycling and scrap-blended low-emission steel production are winning long-term tier-1 global supply framework agreements.
Procurement teams are prioritizing rack frames pre-drilled for acoustic impact sensors and wireless strain gauges. By monitoring column collisions, localized micro-yielding, and floor slab settlement in real time, warehouse managers mitigate catastrophic rack collapse hazards before safety thresholds are breached.
With pharmaceutical cold chains and coastal cross-dock freezers (-30°C) expanding globally, the demand for pre-galvanized coils (HDG) and high-adhesion anti-microbial epoxy finishes has doubled. Buyers avoid standard wet paints that suffer micro-cracking and rust embrittlement under thermal contraction.
High warehouse lease rates demand modularity. Systems engineered with standardized hook geometry and universal teardrop or diamond hole punches allow international enterprises to disassemble, relocate, and reconfigure warehouse layouts across regional distribution networks with near-zero steel scrap.
Global building codes (UBC, IBC 2024, Eurocode 8, AS/NZS 1170.4) require strict inelastic ductility verification. Buyers demand certified beam-to-column rotational stiffness calculations to prevent catastrophic unhooking during high peak ground acceleration (PGA) seismic events.
China's heavy-duty racking manufacturing ecosystem provides global supply chains with an unbeatable convergence of raw material access, integrated tooling fabrication, and sea-freight containerization efficiency.
In the contemporary intralogistics landscape, heavy-duty industrial racking has transitioned from simple warehouse shelving into structural, life-safety capital equipment. The complete supply chain ecosystem in China—spanning primary iron reduction, continuous hot-dip coil rolling, automated roll-forming line design, and proprietary surface finishing chemistry—allows leading Chinese manufacturers to deliver customized structural racking at scale with unprecedented turnaround speeds.
International clients—ranging from logistics leaders such as DHL, CEVA Logistics, and Sony EMCS to automotive conglomerates including UMW, Daihatsu, and Perodua—consistently select top Chinese exporters for multi-thousand pallet capacity projects. The primary differentiator lies in engineering agility: Chinese engineering centers maintain dedicated finite element analysis (FEA) teams capable of reviewing localized building blueprints, slab concrete compressive strengths ($f'_c \ge 25\text{–}30\text{ MPa}$), forklift mast clearances, and NFPA 13 in-rack sprinkler requirements within 48 to 72 hours.
Furthermore, export packaging protocols have been revolutionized. Structural racking profiles undergo bundle-banding with high-tensile steel straps, custom corner protectors, waterproof polyethylene stretch wrapping, and custom-welded steel transport pallets designed for non-tilt side-unloading from 40-foot high-cube (40HC) shipping containers. This rigorous packaging eliminates transit friction abrasion and prevents jobsite assembly delays across North American, European, and Asia-Pacific ports of entry.
Clear, technically accurate answers to critical structural engineering, testing, compliance, and import logistics questions commonly evaluated by global warehouse procurement teams.
Partner directly with China's leading heavy-duty industrial racking manufacturer. Our structural engineering team is prepared to analyze your facility drawings, calculate seismic moment connections, and deliver a comprehensive factory-direct export proposal within 24 hours.
