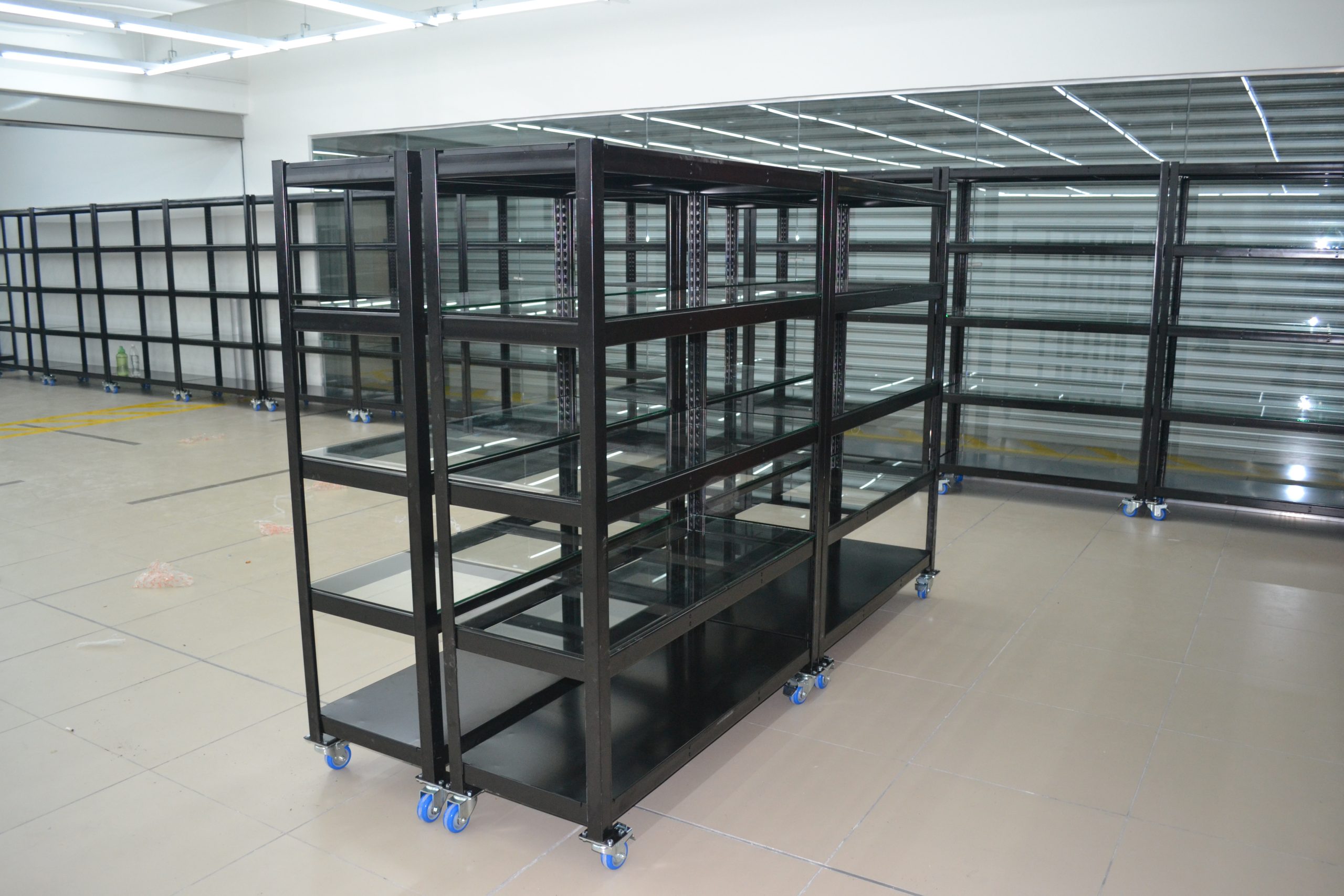

Boltless Modular Rivet Shelving
The 200 Series Rivet Rack is an engineered boltless storage system specifically developed for light-to-medium manual loading. Built from high-tensile cold-rolled steel, it removes the need for nuts, bolts, or specialised tools during assembly.
Assembles rapidly with just a rubber mallet. Keyhole slots ensure rigid taper-locking connections.
Can be disassembled, relocated, and reconfigured repeatedly without structural fatigue or paint flaking.
Compatible with heavy-duty fibreboard, laminated particleboard, or electro-galvanised steel decking plates.
Standard Dimensions & Technical Parameters
Custom fabrication is available for overseas OEM and distributor orders to accommodate specific container dimensions and warehouse requirements.
| Parameter | Standard Specification | Heavy-Duty Configuration |
|---|---|---|
| Load Capacity (per level) | 150 kg – 250 kg (Uniformly Distributed Load) | Up to 400 kg UDL with reinforced support ties |
| Upright Post Height | 1,500 mm / 1,800 mm / 2,100 mm / 2,400 mm | Custom heights up to 3,600 mm upon request |
| Standard Width (Beam Length) | 900 mm / 1,200 mm / 1,500 mm | 1,800 mm (with central reinforcement struts) |
| Shelf Depth | 300 mm / 450 mm / 600 mm | 600 mm / 900 mm double-rivet shelf depth |
| Upright Pitch Pitching | 38.1 mm (1.5 inch) keyhole slot adjustments | 38.1 mm incremental modular spacing |
| Surface Treatment | Epoxy-polyester hybrid powder coating (anti-corrosive, scratch-resistant) | |
| Standard Decking | 9 mm / 12 mm Medium Density Fibreboard (MDF) or Powder-Coated Steel Panels | |
Rapid Tool-Free Assembly
Interlocking rivet heads secure seamlessly into pre-stamped teardrop slots. No complex fasteners or technician skills needed, lowering labor costs significantly.
Flexible Spatial Adaptation
Tier heights can be adjusted swiftly at 38.1 mm increments. Shelving can be converted to dual-tier platforms or adapted for archival storage and back-of-store distribution.
Export Quality Standards
Manufactured in Malaysia strictly adhering to ISO 9001 quality compliance. High-precision cold-roll forming guarantees consistent structural strength across bulk shipments.
Technical & Commercial Insights
Key information for international logistics planners, distributors, and procurement contractors.
Product Performance
Standard single-rivet configurations comfortably hold 150 kg to 250 kg uniformly distributed load (UDL) per tier level. When fitted with double-rivet heavy beams and deck cross-ties, tier capacity easily scales up to 400 kg UDL.
Yes. The modular structure accommodates starter bays and add-on bays, sharing uprights to optimize aisle footprint and steel weight, thus reducing overall purchasing and shipping expenses.
Unlike conventional welded or bolted racks that experience hole enlargement or paint shear, our precision pressed rivets and keyholes maintain dimensional tolerance, preventing joint sagging after repeated installations.
Supply & Export Fulfillment
All beams and uprights are bundled with heavy-duty protective strapping, edge protectors, and waterproof plastic film wrapping. Fibreboards or steel plates are securely palletized for containerized sea shipment.
Yes. We offer electrostatic powder coating in specific RAL colors upon request, alongside OEM carton markings and branded assembly instructions for international distributors.
Standard lead times for 20ft or 40ft containers range between 2 to 3 weeks following order and drawing confirmation from our Shah Alam manufacturing plant.
Equip Your Facility with 200 Series Rivet Racks
Connect with our technical engineers for container load estimations, custom dimension CAD drawings, and factory direct export rates.
