Manufactured by My Interack in Shah Alam, Malaysia, our light duty racking systems provide cost-effective, adaptable, and robust storage solutions for commercial warehouses, hypermarkets, archives, assembly facilities, and stockrooms.
Engineered to strict ISO 9001 and ISO 14001 industrial quality guidelines, these systems optimize vertical airspace without demanding heavy handling machinery. Built with cold-rolled steel and multi-stage anti-corrosion powder coating, each model ensures dependable structural stability, ergonomic manual pick accessibility, and flexible shelf level adjustments.
Interlocking keyhole and rivet profiles ensure rapid assembly and tool-free beam reconfiguration without hardware wear.
Certified Uniformly Distributed Load (UDL) capacities accommodate carton inventory, hardware, and retail stock safely.
Thermoset powder treatment guarantees high scratch resistance, chemical tolerance, and long-term surface durability.
Compatible with high-density fibreboard (HDF), steel shelf panels, wire mesh decks, and moisture-sealed laminates.
Standardized and custom engineered shelf models configured for overseas distributors, B2B procurement, and turnkey retail setups.

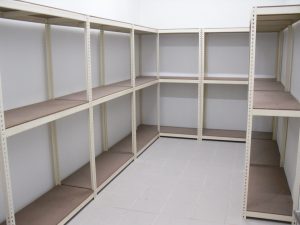

Our baseline boltless steel shelving solution for light warehouse stock, spare-part stores, and back-of-house storage. Cost-effective, quick to relocate, and extremely resilient.

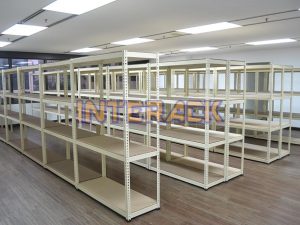

Optimized modular shelving structure with an enhanced upright profile. Engineered for high-frequency carton picking, e-commerce dispatch bays, and retail staging facilities.

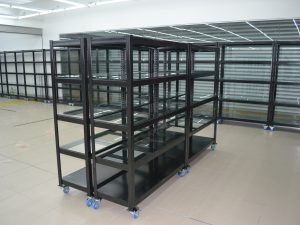

Heavy-gauge rivet-locking design delivering outstanding transverse rigidity without diagonal back braces. Offers unobstructed 4-side access for maintenance shops and document archives.

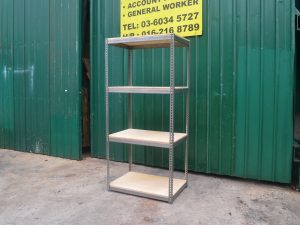

Manufactured from SUS 304 / 201 stainless steel. Engineered for sanitary requirements in cold rooms, food handling centers, hospitals, and high-humidity environments.
Features deeper shelf depth and reinforced horizontal beam channels. Designed to store bulkier packaging containers, plastic tote bins, and heavier maintenance equipment safely.
Heavy upright column variant built to hold dense item groupings while retaining modular, boltless adjustability. Highly utilized in automotive and wholesale storage distribution bays.

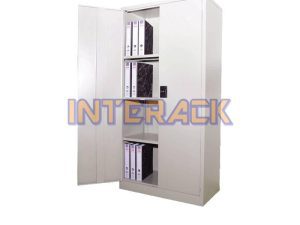

Commercial-grade steel lockers, mobile compactors, and filing shelving systems. Provides systematic, secure, and fire-resistant document archiving for administrative zones.

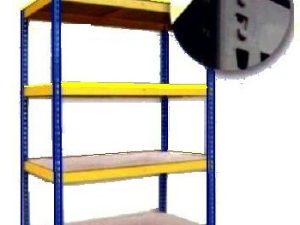

The bridge between light duty shelving and medium duty longspan systems. Employs reinforced cold-formed beam profiles to safely manage severe manual load demands up to 350 kg.

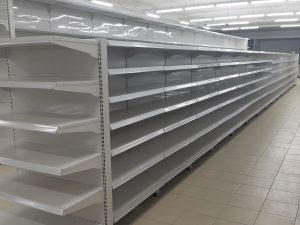

Commercial merchandising gondola racks tailored for supermarkets, retail chains, and display showrooms. Available in single-sided wall bays and double-sided island center runs.
Compare standard manufacturing parameters to identify the correct shelf configuration for your specific loading and space criteria.
| Model Series | Load Rating (UDL) | Standard Heights | Standard Depths | Standard Widths | Deck Material Options |
|---|---|---|---|---|---|
| 100 / 110 Value Rack | 100 – 180 kg / shelf | 1200 / 1500 / 1800 / 2100 mm | 300 / 450 / 600 mm | 900 / 1200 / 1500 mm | HDF, MDF, Steel Plate |
| 200 Rivet Rack | 150 – 250 kg / shelf | 1500 / 1800 / 2100 / 2400 mm | 450 / 600 / 900 mm | 900 / 1200 / 1500 / 1800 mm | Fibreboard, Wire Mesh |
| 300 Stainless Steel | 100 – 200 kg / shelf | 1500 / 1800 / 2000 mm | 400 / 500 / 600 mm | 900 / 1200 / 1500 mm | SUS 304 Perforated / Sheet |

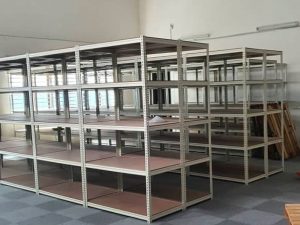

| 400 / 410 Extra Rack | 200 – 320 kg / shelf | 1800 / 2100 / 2400 / 3000 mm | 450 / 600 / 900 mm | 1200 / 1500 / 1800 mm | Solid Steel, HDF with Tie Bar |
| 600 Extra Heavy Rack | 250 – 350 kg / shelf | 1800 / 2100 / 2400 / 3000 mm | 600 / 800 / 900 mm | 1500 / 1800 / 2100 mm | Heavy Steel Deck / Plywood |
| 80 Gondola Shelving | 60 – 100 kg / shelf | 1200 / 1500 / 1800 / 2100 mm | 350 / 450 mm | 900 / 1200 mm | Powder Coated Metal Trays |
* Capacities assume uniformly distributed loading (UDL). Custom heights up to 3,600 mm and non-standard bay dimensions can be manufactured upon project request.
UDL assumes product weight is spread evenly across the entire surface of the shelf deck. Point loading or concentrated center weights reduce overall capacity. Where concentrated items are stored, our engineers specify intermediate support tie bars or heavier deck plates.
Traditional angle-post bolted racks require nuts, bolts, and corner braces that loosen under operational vibration and complicate level adjustments. Boltless rivet designs lock tightly into keyholes as loads are applied, yielding superior rigid stability and saving up to 60% installation labor time.
Yes. Our automated electrostatic powder-coating uses non-toxic, lead-free epoxy resins cured at 200°C, offering high resistance to flaking, chemicals, and mild cleaning detergents. For cleanrooms and washdown food zones, our 300 Series stainless steel line provides non-porous, rust-proof sanitation.
Yes. While standard finishes include industrial grey, matte black, and safety orange/blue, we provide custom RAL electrostatic powder coating for corporate retail chains and hypermarket branding on qualification order volumes.
Yes. My Interack ships across Southeast Asia and global export hubs. Racks are flat-packed in high-density export wrapping with corner edge protectors to minimize freight volume and prevent damage during containerized transit.
Simply use our live contact button or provide room dimensions, target shelf levels, and expected unit weights. Our design engineers will generate preliminary layout CAD models and comprehensive quotation pricing within 24 hours.
