My Interack manufactures premium heavy duty racking systems engineered to accommodate load profiles from 500 kg up to 5,000 kg per beam level. Manufactured using high-tensile structural steel, our systems comply with international racking standards and rigorous ISO quality controls.
Whether configuring high-throughput 3PL logistics facilities, raw material staging, temperature-controlled cold storages, or heavy manufacturing warehouses, our structural engineers deliver customized layouts optimized around aisle clearances, forklift specifications, and inventory velocity.
Review our comprehensive series of heavy duty racking configurations tailored for diverse handling systems and load profiles.

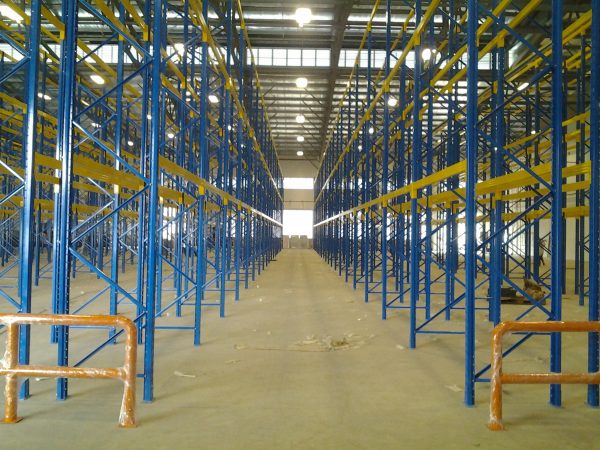

The global standard for multi-product warehousing, delivering 100% immediate selectivity to every pallet position with standard counterbalance or reach trucks.

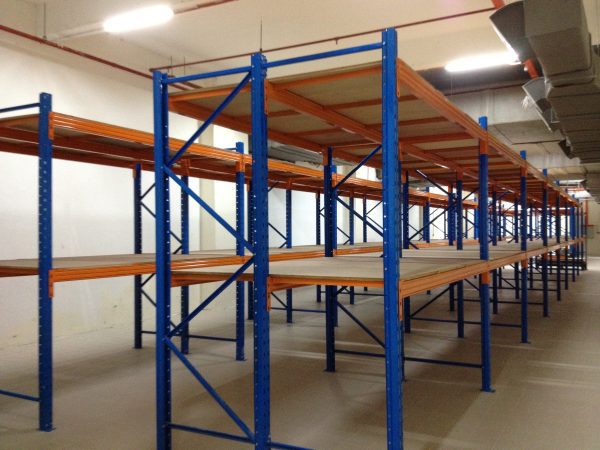

Optimized modular twin-bay engineering configured for paired pallet locations, lowering structural cost per pallet position while sustaining high stiffness.

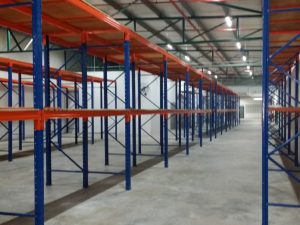

Increases storage density by 30-40% compared to standard selective racking by staging pallets two-deep using specialized pantograph reach trucks.
Heavy-duty open span shelving designed for un-palletized heavy parts, machinery molds, and bulky cartons needing direct manual and hoist access.

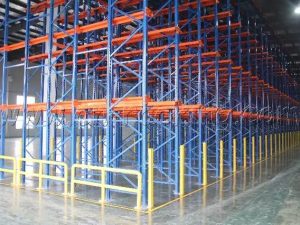

Eliminates working aisles so forklifts drive directly into storage lanes. Ideal for large-volume batches of uniform SKUs under a LIFO inventory pattern.

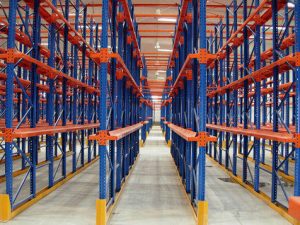

Engineered with separate loading and retrieval access sides, providing high-density lane storage combined with strict FIFO rotation for date-sensitive items.

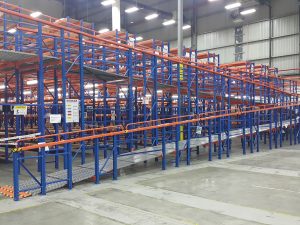

Utilizes heavy-duty pallet rack upright columns as structural load-bearing supports to build multi-tier intermediate floors above active storage areas.

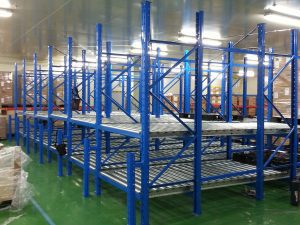

Pallets glide automatically down inclined roller tracks from loading to picking faces. Features centrifugal brake rollers and separation separators for safe FIFO logistics.

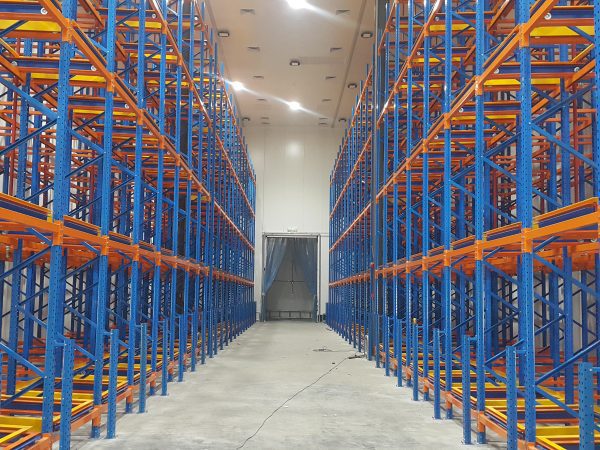

Telescopic rolling carts nested on inclined rails allow loading up to 6 pallets deep. When retrieving front loads, rear pallets roll forward under controlled gravity.
Single-sided structural columns anchored along warehouse perimeters with unobstructed horizontal arms for pipes, timber packs, structural steel, and bar stocks.

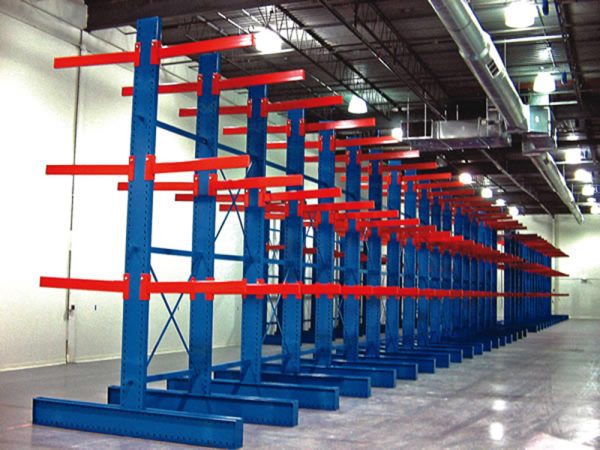

Double-sided central storage towers providing cantilever loading from both aisles. Eliminates vertical front-column hindrances for extra-length industrial goods.

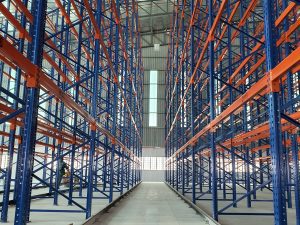

Compresses working aisles down to 1.6 - 1.8 meters using wire-guided or rail-guided turret trucks, achieving maximum vertical clearance and dense cube utilization.
Select your storage configuration based on throughput intensity, inventory rotation model, and available cubic volume.
| System Category | Rated Capacity | Space Utilization | Selectivity | Forklift Equipment |
|---|---|---|---|---|
| Standard Selective (3000 Series) | 1,000 – 4,500 kg/level | Moderate (40% - 50% Floor) | 100% Immediate | Counterbalance, Reach Truck |
| Double Deep (3500 Series) | 1,000 – 3,000 kg/level | High (60% - 65% Floor) | 50% Immediate | Specialized Deep-Reach Truck |
| Drive-In / Thru (4000/4500) | Up to 1,500 kg/pallet | Very High (75% - 85% Floor) | Lane Level (LIFO / FIFO) | Standard Reach Truck |
| Push-Back Carts (6500 Series) | Up to 1,400 kg/pallet | High (70% - 75% Floor) | Lane Level (LIFO) | Standard Counterbalance |
| Very Narrow Aisle (9000 Series) | 1,000 – 4,000 kg/level | Maximum (85% - 90% Vertical) | 100% Immediate | Specialized VNA Turret Truck |
| Heavy Cantilever (7000/7500) | 500 – 3,000 kg/arm | Optimized for Length | 100% Linear Access | Side Loader, Multi-directional |
Every industrial facility has unique load profiles and floor slab constraints. Our engineering department develops fully dimensioned CAD drawings, seismic calculations, and floor load dispersion designs compliant with international racking standards.
