Engineered Longspan Storage with Heavy Fibreboard Decks

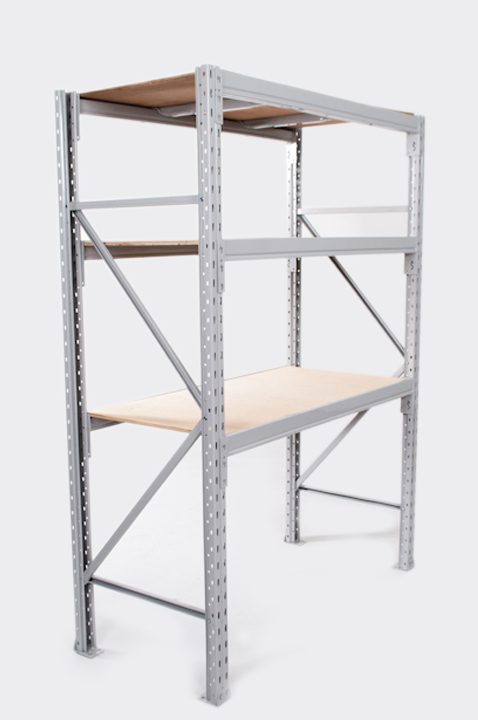

The 1000 Series Ezyspan Shelving Rack (Fibreboard) is an industrial-grade, versatile storage system manufactured in Malaysia by My Interack. Designed to bridge the functional gap between lightweight utility shelving and structural pallet racks, this system utilizes high-tensile upright frames and precision-profiled step beams to ensure uncompromised rigidity for manual picking and SKU segregation.
Fitted with resilient, high-density fibreboard panels, the 1000 Series accommodates non-standard packaging, heavy cartons, hardware containers, and maintenance components with complete flat-bottom support.
- Specially profiled upright columns engineered to prevent torsion and deflection under heavy manual loads.
- Modular multi-tier integration: easily connected to raised walkways and overhead catwalk mezzanine platforms.
- Smooth, snag-free fibreboard deck panels eliminate packaging abrasion and allow effortless sliding during order picking.
- Corrosion-resistant epoxy powder coating tailored for tropical and high-humidity logistics environments.
Technical Specifications & Structural Dimensions
| Series Code | 1000 Series Ezyspan Medium Duty Shelving System |
|---|---|
| Decking Material | Heavy-Duty Fibreboard (Plywood / Particle Board options available upon consultation) |
| Uniformly Distributed Load (UDL) | 500 kg to 1,000 kg per shelf tier (dependant on clear span and beam profile) |
| Standard Frame Heights | 1,500 mm, 1,800 mm, 2,100 mm, 2,400 mm, 3,000 mm up to multi-tier platform heights |
| Clear Beam Lengths | 1,200 mm, 1,500 mm, 1,800 mm, 2,100 mm, 2,400 mm |
| Standard Shelf Depths | 450 mm, 600 mm, 900 mm, 1,200 mm |
| Beam Connection Type | Boltless heavy-duty connector claw with integrated safety locking pins |
| Surface Finishing | Treated degreased steel with durable electrostatic powder coating |
| Safety Compliance | ISO 9001 / ISO 14001 certified manufacturing workflow with load rated signage |
Configured for High-Demand Logistics & Warehousing
From automotive spare part fulfillment hubs to e-commerce sorting facilities, the 1000 Series provides balanced load carrying, accessibility, and clean visual presentation.
Automotive & Machinery Parts
Supports metal hardware, machine tooling, dies, and unboxed heavy parts without risk of deck collapse or shelf bowing.
E-Commerce & 3PL Fulfillment
Optimized for rapid pick-and-pack operations where workers require direct 100% hand access to open-faced inventory bins.
Multi-Tier Mezzanine Storage
Can serve as upright upright columns to support raised mezzanine floors, multiplying usable floor square footage without building extensions.
Frequently Asked Questions
Key technical and procurement details regarding the 1000 Series Ezyspan Shelving System.
Unlike light rivet racks designed for under 300kg loads, Ezyspan uses cold-rolled industrial-gauge uprights and stepped box beams that accommodate 500kg up to 1,000kg per level. It provides the heavy loading power of miniature pallet racking with the convenience of hand picking.
Each shelf tier includes structural steel shelf retainers / tie bars beneath the fibreboard that prevent deflection over long beam spans. For high-humidity facilities, sealed moisture-resistant boards or galvanized steel decking panels are also available.
Yes. The modular architecture utilizes Starter bays and Add-on bays that share intermediate upright frames, saving both floor footprint and equipment costs as your storage line expands horizontally.
Yes. Our in-house technical engineering team assesses your facility clear heights, slab loading parameters, and handling procedures to provide certified CAD layouts and structural load capacity certifications.
