Maximized Pallet Capacity with Minimum Operating Aisles

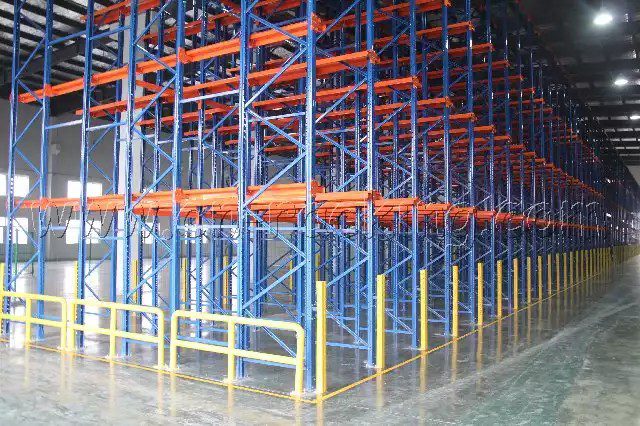

Manufactured by My Interack in Shah Alam, Malaysia, the 4000 Series Drive-In Racking System delivers high-density warehouse cube utilization by eliminating non-productive operational aisles. Forklifts drive directly into structural storage lanes, placing pallets on continuous load-bearing cantilever rails.
Key Engineering Highlights
- Up to 75% Storage Capacity Increase
- Optimized for LIFO Logistics Cycles
- High-Strength High-Tensile Steel Profiles
- Cold Storage & Freezer Temperature Tolerant
- Floor Guide Rails for Forklift Protection
- Fully Custom Bay Depth & Height Sizing
This system is ideal for storing homogeneous, bulk products that do not require individual pallet selectivity. By consolidating pallets into continuous deep lanes, thermal dispersion is significantly curtailed—making the 4000 Series the premier industrial standard for cold chains, beverage manufacturers, and seasonal inventory warehouses.
Engineering Specifications
Every 4000 Series installation is calculated according to warehouse floor slab loads, seismic standards, and operational handling machinery specifications.
| Specification Parameter | Standard Engineering Value / Options |
|---|---|
| Storage Density Configuration | Last-In, First-Out (LIFO) or Drive-Thru First-In, First-Out (FIFO) |
| Floor Space Utilization | Up to 80% of warehouse cubic volume |
| Pallet Capacity per Level | 500 kg to 2,000 kg per pallet position (Uniformly Distributed Load) |
| Lane Depth | Configurable from 2 to 12+ pallets deep per lane |
| System Clear Height | Up to 12 meters (governed by lift truck mast reach) |
| Steel Material Specification | Certified high-tensile structural cold-rolled steel |
| Protective Finish | Epoxy polyester powder coating / Hot-dip galvanized for extreme sub-zero cold rooms |
| Safety Accessories | Floor guide rails, structural column protectors, upright back stops, top tie beam bracing |
Where 4000 Series Excels
Designed for facilities managing substantial volumes of standard-sized pallet goods with predictable movement cycles.
Cold Storage & Freezers
Significantly lowers refrigeration costs per pallet by maximizing storage density in refrigerated rooms where every cubic meter incurs high energy expenses.
Food & Beverage Hubs
Accommodates massive quantities of batch-produced packaged foods, canned goods, and bottled drinks where full lanes are stocked and turned around simultaneously.
Raw Materials & Chemical Storage
Structured bulk storage for resin drums, raw industrial compounds, and non-perishable uniform supplies requiring sturdy, secure warehouse staging.
Frequently Asked Questions
Key technical insights to assist project procurement managers, supply chain directors, and warehouse architects.
The primary advantage is radical storage space efficiency. By eliminating intermediate working aisles required by standard selective racks, the 4000 Series can increase overall pallet capacity by 60% to 75% in the same warehouse footprint. This makes it one of the most cost-effective bulk storage solutions available.
Standard counterbalance and reach trucks can be utilized, provided their chassis width, mast profile, and overall overhead guard width clear the bay entrance and side pallet support rails. We strongly recommend floor guide rails to assist truck alignment and protect the upright frame columns from collision damage.
Drive-In Racking features a single entry/exit point per lane, executing a Last-In, First-Out (LIFO) inventory pattern. Drive-Through Racking provides access from both front and rear aisles, allowing a First-In, First-Out (FIFO) flow, although requiring an additional operational handling aisle.
Yes. My Interack manufactures under strict ISO quality standards and delivers turnkey solutions across Malaysia, Singapore, and regional export markets. We provide full structural layout design, load capacity calculations, professional on-site erection, certified load notices, and scheduled maintenance inspection services.
Consult Our Industrial Racking Specialists
Submit your facility layout, clear ceiling heights, and pallet specifications. Our engineers will draft an optimized high-density storage layout designed for peak throughput and maximum safety.
