Technical Specifications & Structural Architecture
Manufactured from structural grade steel with precision roll-formed frames, built to resist deflection and dynamic handling impact in high-throughput distribution environments.
Structural Uprights
Omega-profile column uprights with 50mm pitch punchings provide rigid support, enabling tiers to be adjusted vertically in minutes to accommodate changing stock heights.
Step-Beam Load Transfer
Engineered step-down horizontal beams seat the high-density fibreboard panels flush with the beam top, protecting timber edges from impact during fast sliding loads.
Positive Safety Pins
Spring-loaded steel locking pins lock every beam connector securely into the upright, completely eliminating accidental dislodgement from manual lifting or reach forklifts.
| Parameter | Standard Engineering Specification | Optional Upgrades / Custom Engineering |
|---|---|---|
| Standard Bay Clear Spans | 1,200mm, 1,500mm, 1,800mm, 2,100mm, 2,400mm, 2,670mm | Bespoke clear spans tailored to specific container dimensions |
| Frame Depths | 450mm, 600mm, 800mm, 900mm, 1,000mm, 1,200mm | Double-deep frame designs and linked back-to-back bays |
| Frame Heights | 1,500mm up to 6,000mm single-run profiles | Multi-tier rack catwalks and integrated mezzanine flooring |
| Uniform Distributed Load (UDL) | 500 kg to 1,000 kg per beam level | Heavy reinforced under-deck supports for localized heavy tools |
| Shelf Decking Type | 12mm – 18mm Pre-conditioned High-Density Industrial Fibreboard | Galvanized steel deck panels, wire mesh decking, or particle board |
| Surface Finish | Electrostatic powder coating (Dark Grey / Safety Orange / Blue) | Galvanized frames for outdoor or high-humidity environments |
Warehouse Application & Project Gallery

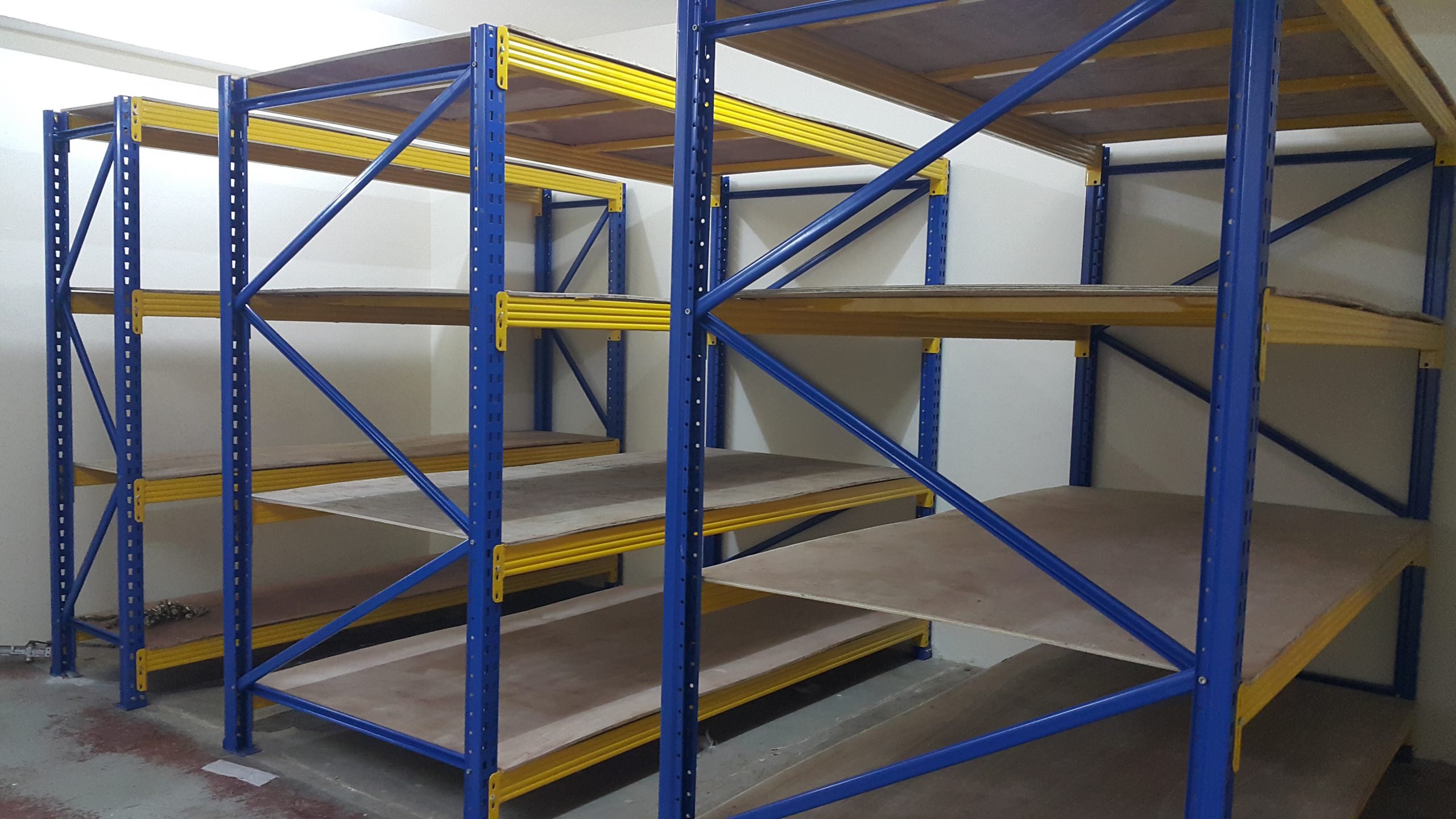

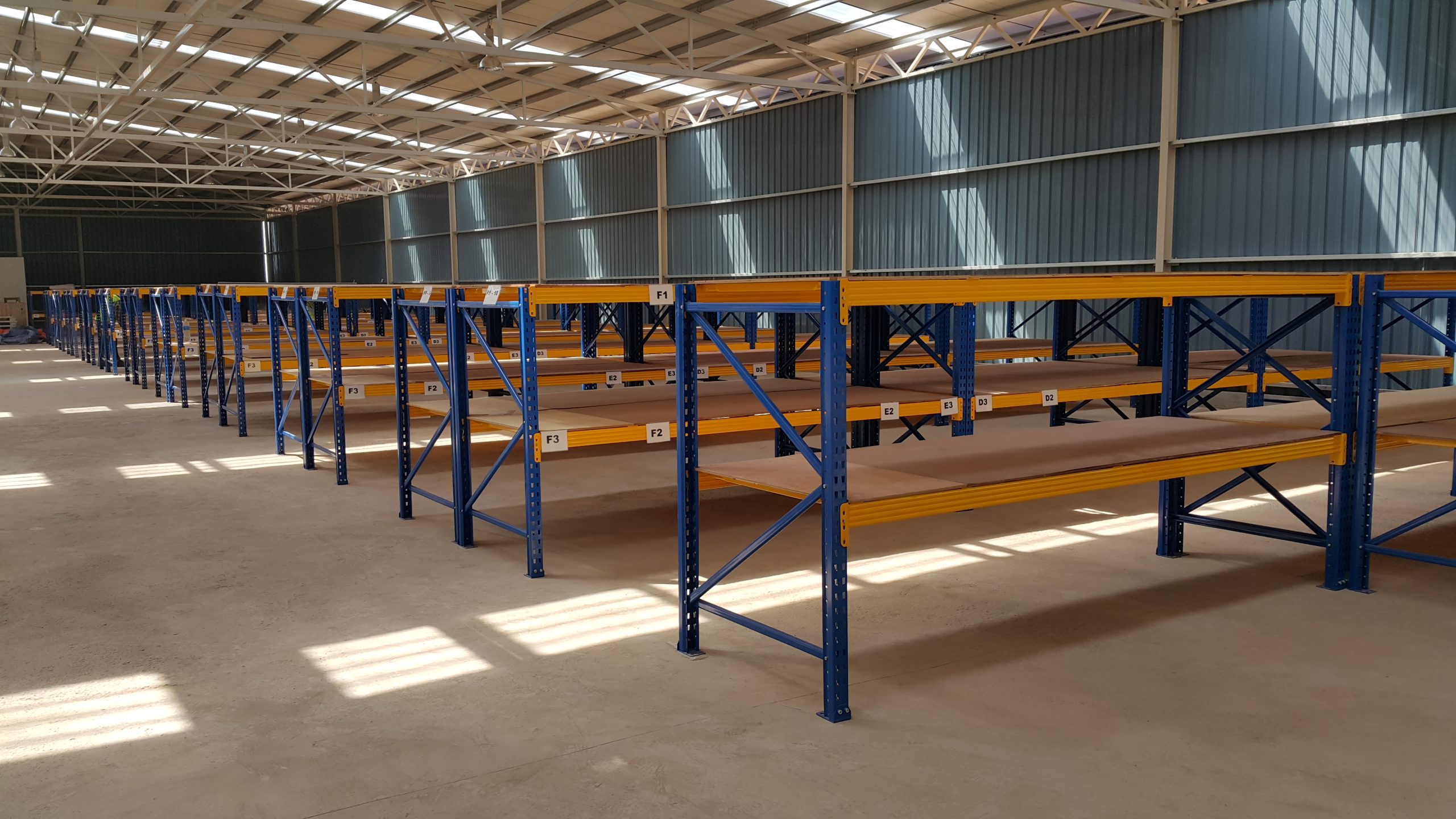

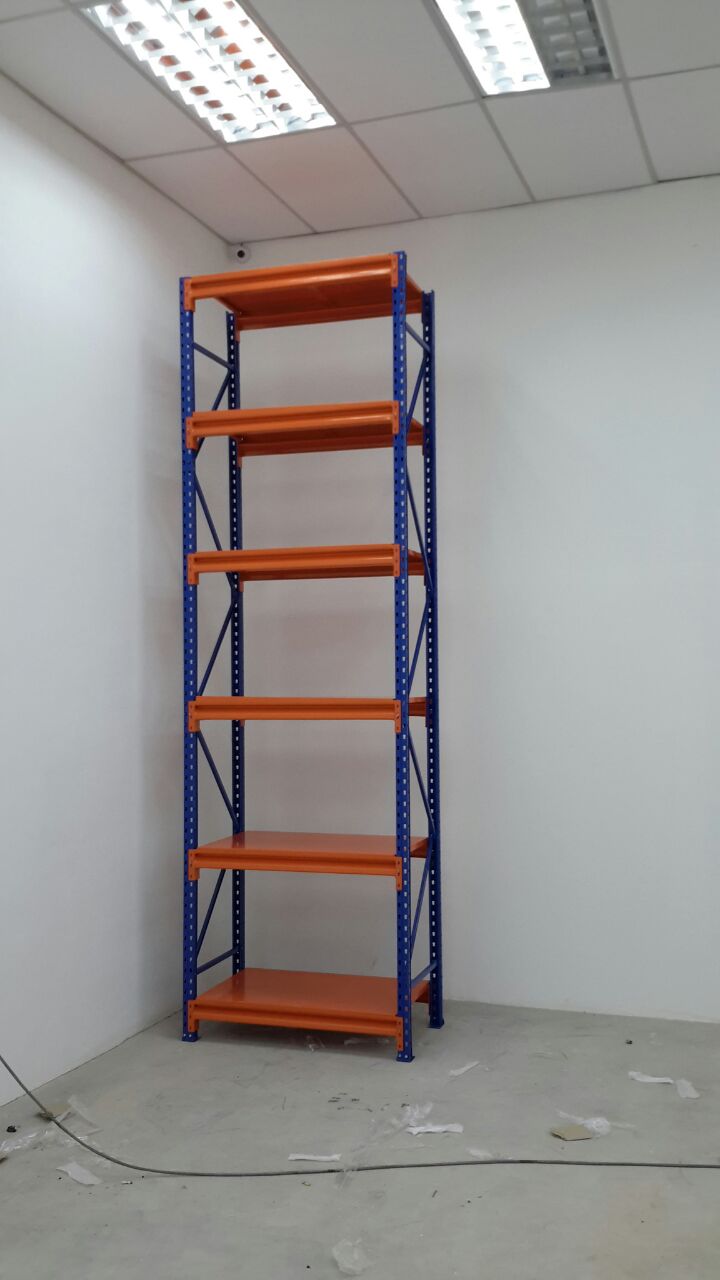

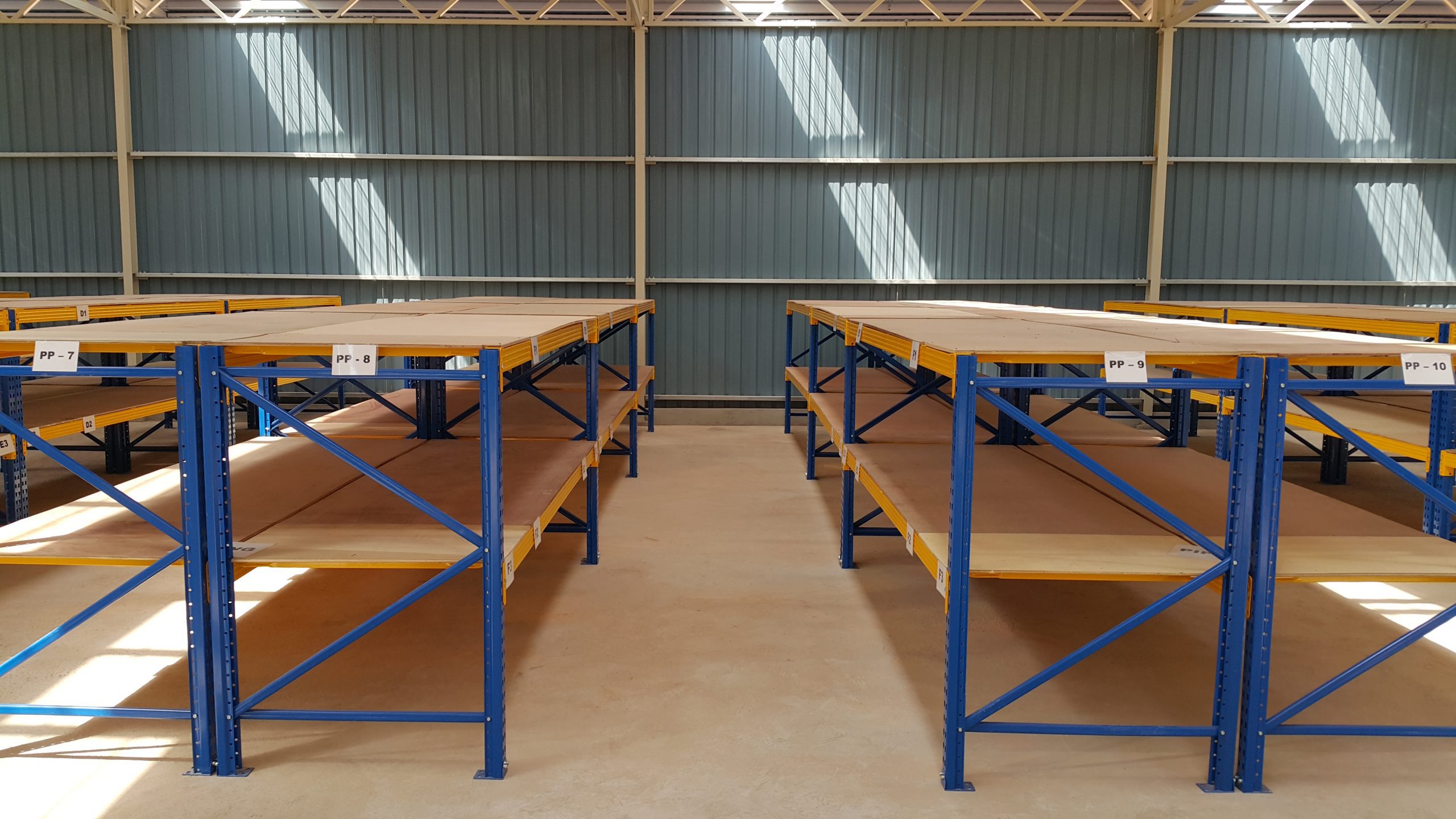

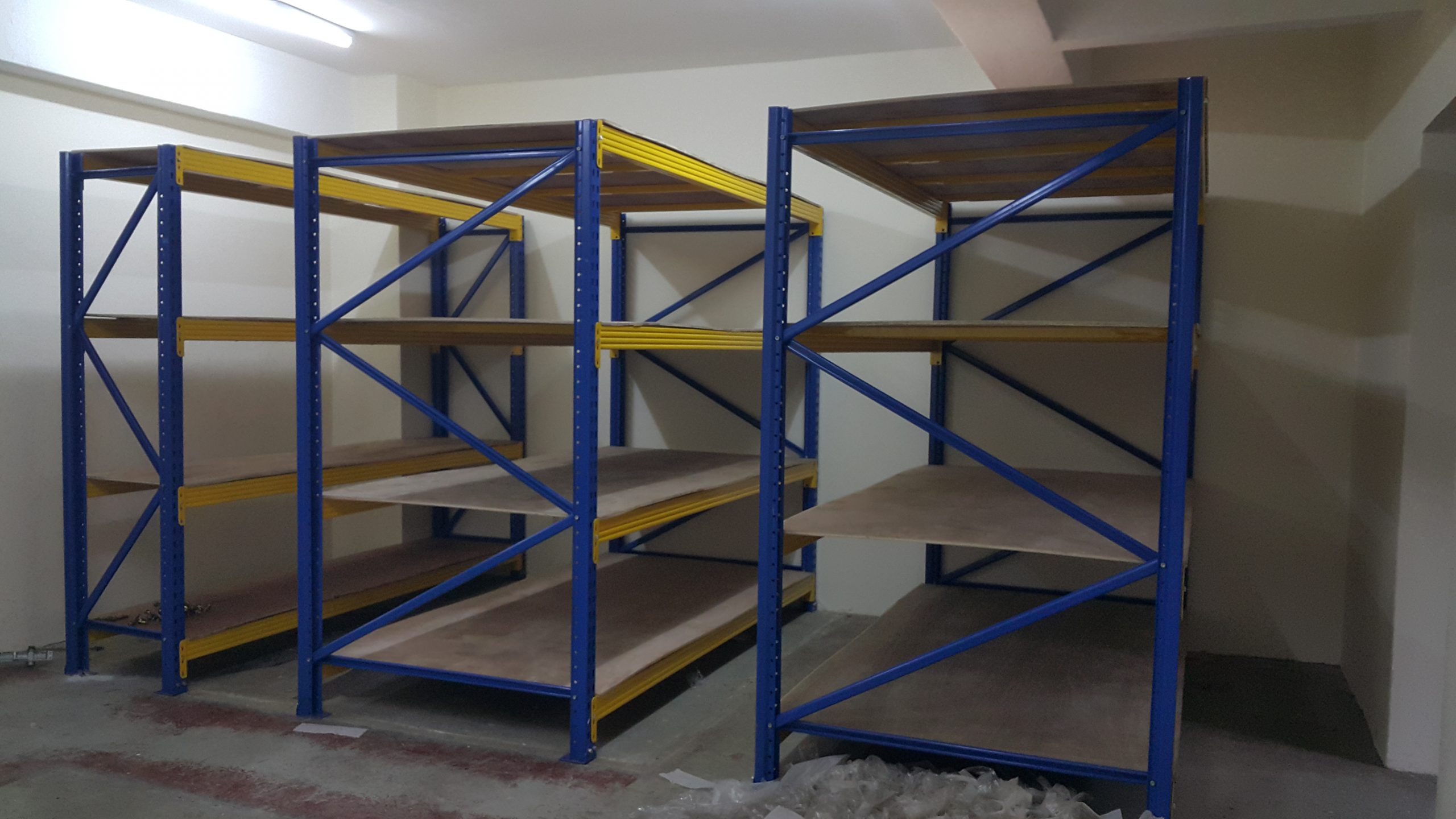

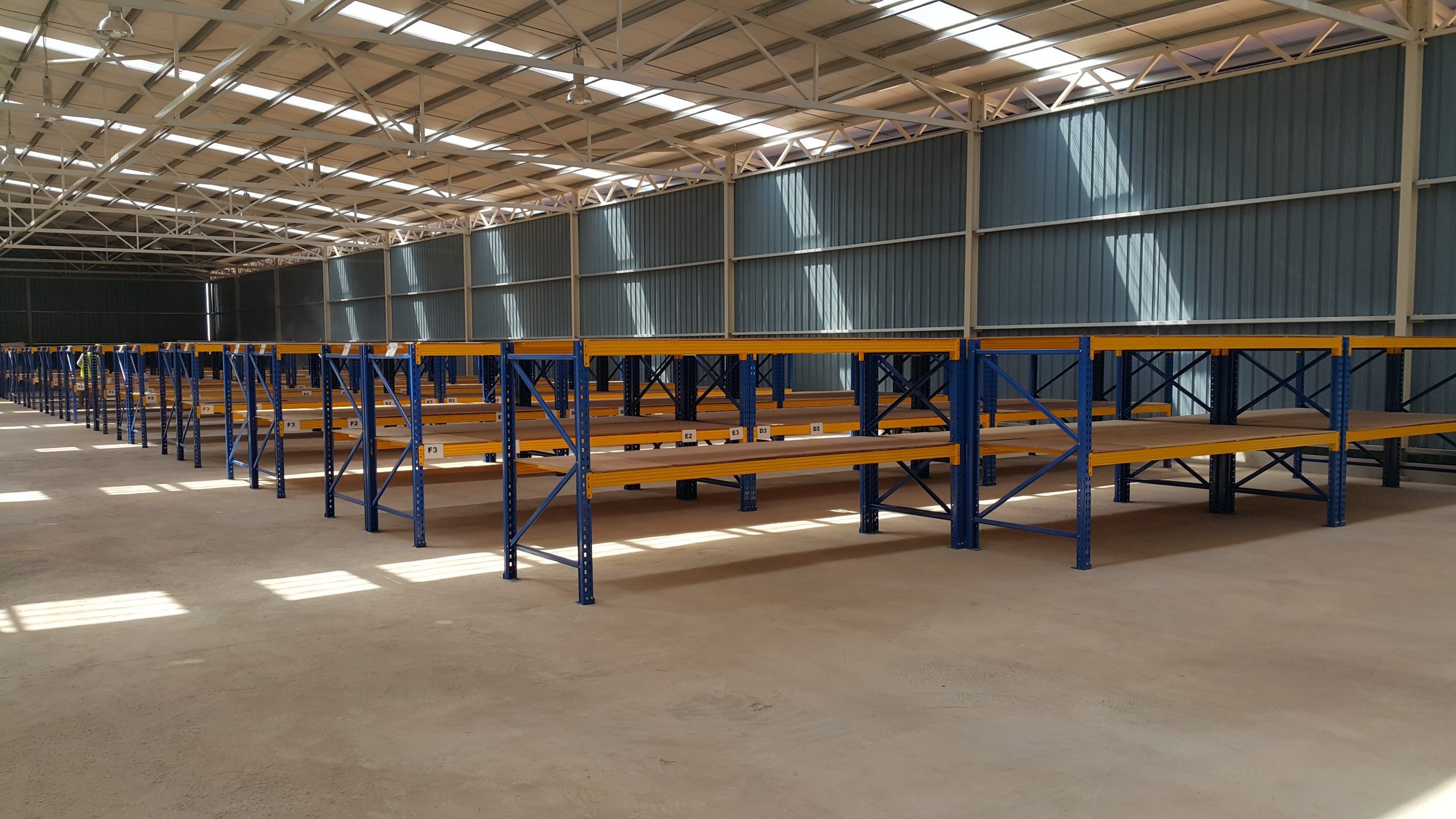

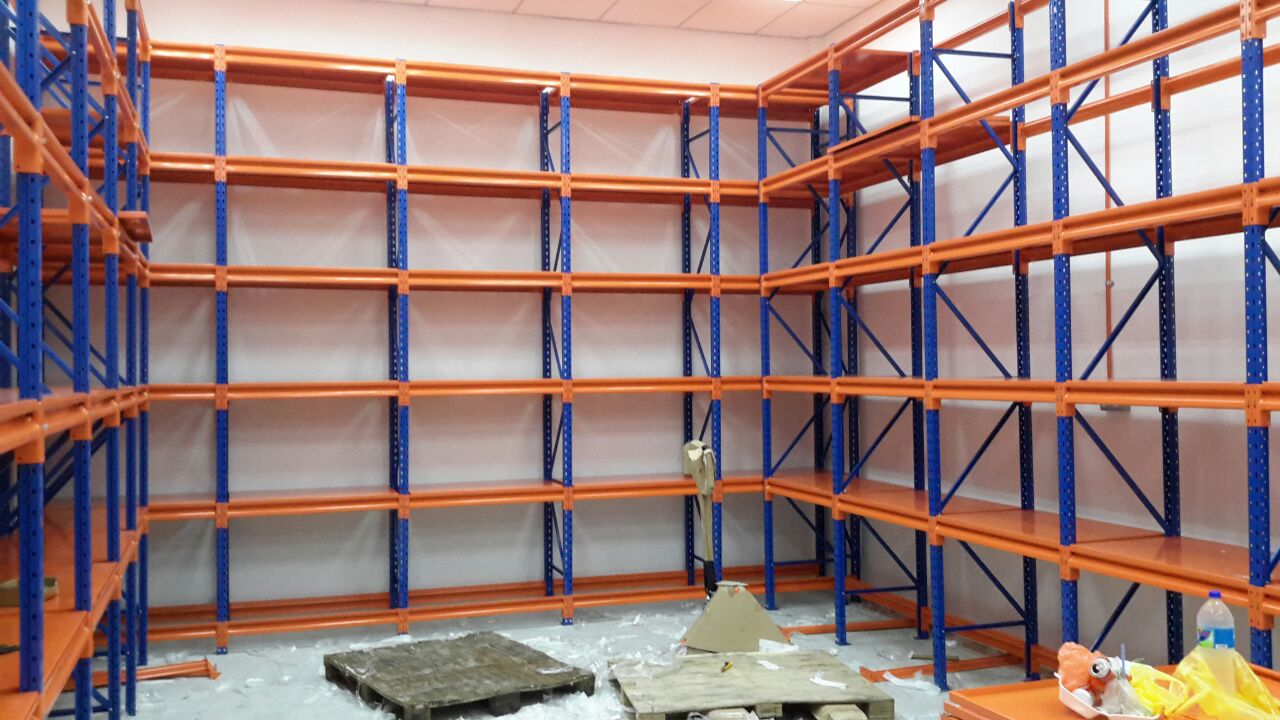

Verified installations across manufacturing plants, parts distribution hubs, and e-commerce picking lines across Southeast Asia.
Frequently Asked Questions
Consult our structural engineers regarding load capacities, floor anchor requirements, and facility layout planning.

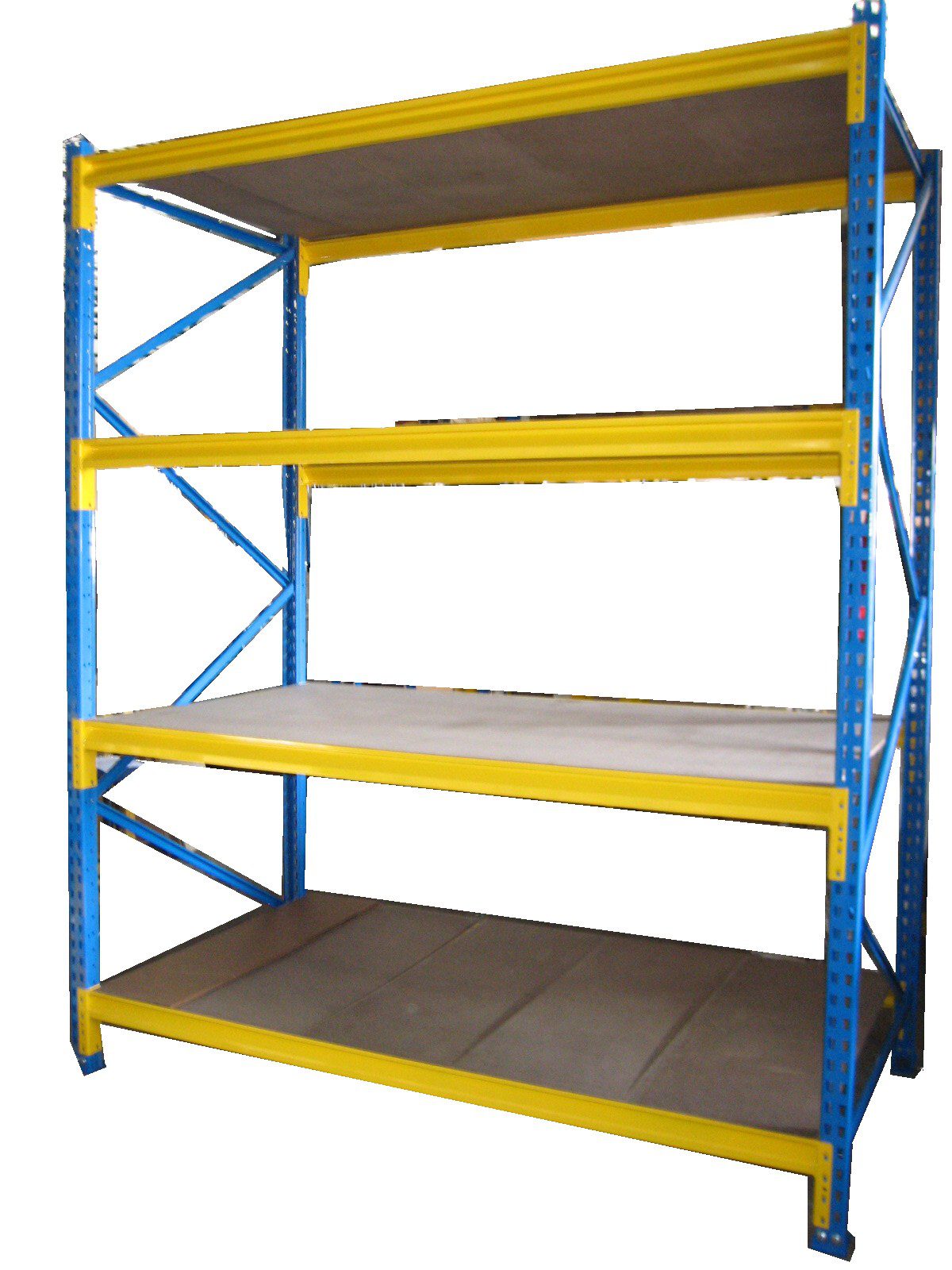

The 2000 Series Longspan Shelving Rack is a heavy-duty, boltless storage system specifically engineered for manual loading and picking of bulky, un-palletised items. Featuring bay spans up to 2.67 meters and heavy-duty fibreboard decking, it delivers extreme modularity, rapid tool-free beam adjustment, and a long-lasting epoxy powder-coat finish suited for industrial parts depots, automotive spare stock, and e-commerce picking operations.
The 2000 Series supports a uniformly distributed load (UDL) between 500 kg and 1,000 kg per beam level. To maintain maximum structural safety, point loading should be avoided, and weight must be dispersed evenly across the fibreboard surface supported by internal cross-supports.
Yes. The heavy-gauge upright columns can be extended to support two-tier or three-tier raised rack catwalk systems, dramatically multiplying floor space without separate building alterations. Stairs, safety handrails, and pallet drop gates can be fully integrated into the design.
Racking should be anchored firmly to industrial concrete slabs using certified M10/M12 expansion anchors. Safety locking pins must remain locked in each beam connector. In compliance with warehouse safety practices, we recommend periodic certified audits under our 18000 Series Interservice protocol.
