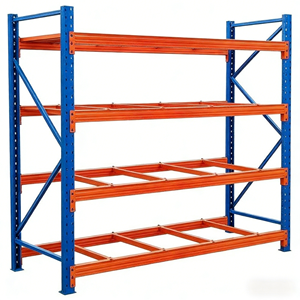

Precision-engineered structural steel pallet racks for high-density warehouse storage environments.
Modern industrial supply chains demand maximum cubic volume utilization. As industrial real estate cost per square meter rises exponentially across key logistics corridors, distribution operators are forced to transition from horizontal footprint expansion to high-bay vertical storage optimization. Very Narrow Aisle (VNA) Pallet Racking Systems represent the pinnacle of selective high-density pallet storage engineering, compressing traditional forklift working aisles from 3.5–4.5 meters down to an ultra-compact 1.5–1.8 meters.
As a leading OEM/ODM VNA Pallet Rack Manufacturer & Factory, our structural engineering team utilizes high-tensile cold-rolled steel coils (Q235B and Q355B grade) precision-profiled via multi-stage continuous automated cold-roll forming lines. By narrowing aisle clearances and extending clear rack heights beyond 15 meters, VNA systems unlock up to 90% space utilization efficiency while maintaining 100% direct pallet accessibility (100% selectivity). This capability bridges the operational gap between static bulk warehousing and fully automated matrix storage.
Unlike standard selective rack configurations, VNA structural assemblies require elevated torsional rigidity, minimal upright frame deflection, and strict adherence to structural tolerances specified under FEM 10.2.02 and EN 15512 standards. Key system components custom-manufactured in our factory include:
Cold-formed omega profiles featuring multi-ribbed geometry to resist buckling loads under extreme vertical loads exceeding 20,000 kg per bay frame.
Dual-C interlocking beam profiles featuring robotically welded 4-claw or 5-claw connectors that maximize connection moment stiffness and eliminate rotational play.
Heavy-duty floor-anchored steel guide angles (100x75x8mm) or inductive sub-floor wire guidance channels engineered for high-reach VNA turret trucks and AGVs.
The engineering selection of warehouse racking depends on load dynamics, handling equipment, and building floor slab tolerances. The following matrix illustrates structural metrics across our main OEM/ODM product series:
| Racking Architecture | Aisle Width Requirement | Maximum Height | Load Capacity (per level) | Selectivity Rate | Guidance Method Required |
|---|---|---|---|---|---|
| VNA Selective Pallet Rack | 1.5m – 1.8m | Up to 16.5 Meters | 1,000 kg – 3,500 kg | 100% Direct Access | Mechanical Rail / Inductive Wire |
| Double-Deep VNA Rack | 1.7m – 1.9m | Up to 14.0 Meters | 1,500 kg – 3,000 kg | 50% Direct Access (LIFO) | Pantograph Reach Turret Truck |
| Automated Radio Shuttle VNA | 1.6m – 1.8m (Aisle Face) | Up to 18.0 Meters | 1,500 kg per Shuttle | Deep-Lane High Density | Pallet Runner / Shuttle Cart |
| Standard Selective Rack | 3.2m – 4.2m | Up to 10.0 Meters | 1,000 kg – 4,000 kg | 100% Direct Access | None (Standard Counterbalance) |
| Heavy Duty Drive-In Rack | 3.0m – 3.5m | Up to 12.0 Meters | 1,000 kg – 2,000 kg | 20%–30% (FILO / FIFO) | Entry Protection Buffers |
Procurement directors and supply chain executives are changing how they evaluate material handling infrastructure investments. Procurement is shifting from initial capital expense (CapEx) to Total Lifecycle Yield and Structural Adaptability. Key trends shaping global procurement strategies include:
Procurement specs now mandate tight manufacturing tolerances (±0.5mm) on beam deflection and guide rail alignment to support Autonomous Mobile Robots (AMR) and automated VNA turret trucks operating without human drivers.
Global corporations demand verified environmental compliance. Procurement contracts require zero-VOC electrostatic powder coatings, zinc-chromate-free galvanized finishes, and steel coils sourced from electric arc furnace (EAF) mills.
Intermediary distributors are being bypassed in favor of direct factory customization (OEM/ODM). B2B buyers require custom beam punch profiles, bespoke seismic baseplates, and modular upright bolt-together subassemblies that shorten installation downtime.
Racking systems are transitioning into smart assets. Modern procurement guidelines incorporate integrated strain gauges, impact monitoring sensors on aisle end-guards, and mandatory annual structural safety audit protocols.
As an advanced material handling equipment factory, our R&D roadmap focuses on pushing structural load-to-weight ratios through metallurgical engineering and high-precision manufacturing automation. Key technological developments include:
By transitioning from conventional Q235 steel to micro-alloyed cold-rolled high-tensile steel grades (such as Q355B and Q460), our factory reduces total structural steel weight while raising structural buckling resistance by up to 35%. This innovation allows taller rack profiles with thinner wall thicknesses, reducing freight container costs for international OEM shipments.
Structural reliability depends on beam-to-connector weld integrity. Our production lines use multi-axis robotic MAG welding stations that maintain constant weld penetration without micro-porosity. Furthermore, all structural steel undergoes a 9-stage chemical pre-treatment process—including iron-phosphatizing and nano-ceramic passivation—before receiving an electrostatically applied epoxy-polyester powder coat baked at 200°C for superior impact and scratch resistance.
Using advanced 3D ANSYS Finite Element Analysis (FEA) modeling, our structural engineers simulate dynamic seismic accelerations, asymmetric bay loading, and forklift impact dynamics. Custom baseplate assemblies, heavy-duty floor anchors, and high-ductility diagonal bracing arrays ensure structural stability in active seismic zones across Global markets.
With an established manufacturing heritage (Operating as My Interack Sdn. Bhd., SSM: 202201004215 / 1449912-V), our manufacturing facility delivers end-to-end industrial storage solutions for Fortune 500 enterprises, third-party logistics (3PL) providers, automotive assembly plants, and cold-chain facilities.
Certified Quality and Environmental Management Systems ensuring strict batch-to-batch steel structural compliance and zero industrial waste leakage.
Full ODM capabilities from site layout drafting (AutoCAD / BIM 3D) to structural static calculation reports and custom roll-forming die production.
Proven track record executing large-scale distribution projects across Malaysia, Singapore, and international industrial zones with dedicated installation teams.
Our OEM/ODM structural racking components and turnkey systems are deployed by leading multinational corporations and regional industrial logistics hubs:
Common structural and logistical queries addressed by our chief engineering team during procurement planning:
Optimize your warehouse floor plan with factory-direct pricing, structural calculation reports, and custom roll-formed VNA pallet racking systems built to your exact payload specs.
