Manufactured to safeguard warehouse racking frameworks against heavy forklift impacts, operational collisions, and progressive structural collapse. Precision-formed from heavy structural steel and high-molecular polymer elastomers.

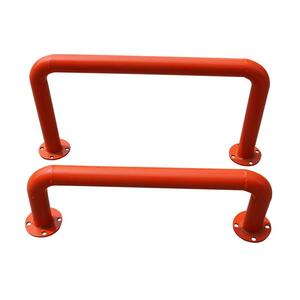

Heavy-duty circular and narrow upright wrap guard designed for multi-angle forklift impact deflection and aisle entry crowd safety control.

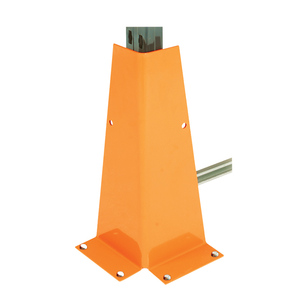

Solid Q235B cold-rolled steel floor-bolted column guard finished in electro-deposited high-visibility RAL 1023 safety powder coating.

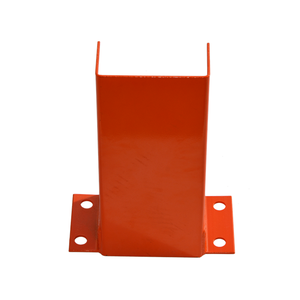

Floor-anchored wraparound U-profile steel armor providing standalone kinetic defense decoupled from delicate rack upright posts.

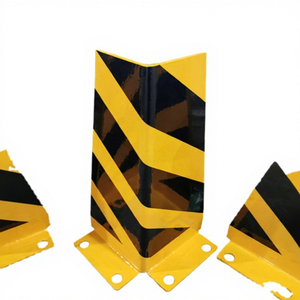

Reinforced frontal bumper plate engineered for extreme forklift intersections, automated shuttle entry zones, and high-velocity transit hubs.

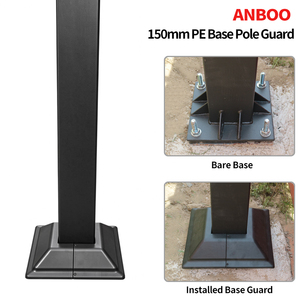

Virgin Polyethylene blow-molded base protector with molecular memory retention. Absorbs repeated side glances without permanent yield deformation.

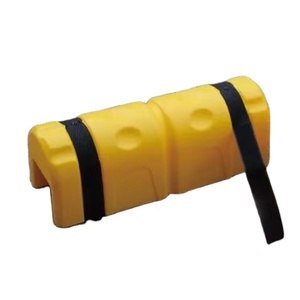

Flexible clip-on column guards featuring an internal honeycomb kinetic dissipation matrix. Protects rack uprights without taking up aisle space.
Multi-purpose corner shield certified by TÜV and SGS for perimeter rack runs, mezzanine column posts, and dynamic warehouse docking areas.

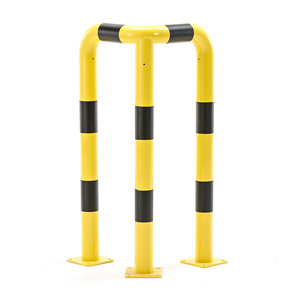

Heavy-duty tubular steel collision barrier safeguarding outer frame uprights where forklift turning radii create high-speed collision hazards.
Building upon decades of warehouse engineering excellence across Southeast Asia, North America, and Europe, our integrated manufacturing plants combine advanced metal fabrication with automated polymer rotational molding.
We operate precision hydraulic CNC press brakes, multi-cavity HDPE extrusion systems, and robotic welding lines. Controlling production from cold-formed raw sheet slitting to electrostatic thermoset finishing guarantees dimensional tolerances within ±0.5mm across high-volume container shipments.
Our facilities are certified under ISO 9001 (Quality Management) and ISO 14001 (Environmental Management). Every production batch undergoes standardized Rockwell hardness verification, drop-weight pendulum impact destruction tests, and salt-spray corrosion evaluations exceeding 500 hours.
With thousands of successful installations delivered across Singapore, Malaysia, Vietnam, Europe, and the Americas, our export engineering team provides complete palletization optimization, low-cube nesting configurations, and multi-lingual documentation conforming to international import regulations.
In modern industrial facilities, warehouse pallet racking operates as a high-density vertical structure under intense static load. The structural integrity of an entire racking bay relies on the continuous vertical cross-section of its upright columns. Pallet rack columns are manufactured from cold-formed structural steel, meaning their axial load-bearing capacity depends heavily on profile geometry.
When a reach truck or counterbalance forklift carrying a 1,500 kg pallet load collides with an unprotected upright column even at low speed (e.g., 2 m/s or 7.2 km/h), the kinetic energy ($E_k = \frac{1}{2}mv^2$) generated exceeds 5,000 Joules. Without external deflection or absorption, this localized impact causes permanent yielding, out-of-plumb deformation, and web denting.
Compliance with European and American logistics safety standards requires certified upright protective hardware at all aisle intersections and transfer lanes:
| Protector Construction Class | Kinetic Dissipation Mechanism | Floor Slab Stress | Post-Impact Integrity | Cold-Store Viability (-30°C) | Lifecycle Cost (5-Year TCO) |
|---|---|---|---|---|---|
| Virgin HDPE Polymer Elastic Shell | Elastic deformation + internal honeycomb air compression | Zero Floor Impact (Clip-on friction) | 100% Shape Memory Recovery | High (Specialized cold-chain blend) | Lowest (No paint, no replacement) |
| Structural Floor-Bolted Steel (Q235B) | Rigid plastic deformation of heavy metal gauge | High (Anchor shear force risk) | Permanent dent; requires replacement | Excellent (Unaffected by chill) | Moderate (Requires anchor repair) |
| Hybrid Steel-Elastomer Core Guard | Steel shell deflection + EPDM internal dampener | Low-Medium (Shock absorbed internally) | Elastomer rebounds; steel resists gouging | Good (EPDM compound formulation) | Economical for ultra-heavy traffic |
| Heavy Tubular End-of-Aisle Barrier | Double-cantilever bending moment resistance | Spread over 4 to 8 heavy anchors | Withstands direct high-speed collisions | Excellent (Hot-dip or epoxy coated) | Essential for high-turnover junctions |
Procurement directors and facility managers are shifting from purely reactive maintenance toward engineered, sustainable impact-mitigation ecosystems. Evaluate key technological and structural trends shaping global procurement over the next five years.
Traditional steel column protectors require heavy concrete drilling. Repeated forklift strikes routinely tear expansion anchors out of concrete, destroying warehouse slab integrity. Forward-thinking procurement teams prioritize snap-on polymer solutions that mount directly to upright profiles, preserving concrete floors and avoiding expensive slab remediation.
As logistics facilities transition to autonomous mobile robots (AMRs) and AGVs, aisle tolerances become tighter. Upright protectors must feature streamlined, low-profile designs that prevent LiDAR sensor occlusions while maintaining robust protection against accidental automated vehicle navigation drifts.
Standard polymers become brittle and shatter under impact in deep-freeze environments (-25°C to -35°C). Modern enterprise procurement specifications demand modified Polyethylene (mPE) compounded with elastomeric plasticizers that retain ductile impact resistance without cold embrittlement.
Global corporate ESG mandates require fully traceable, non-toxic, 100% recyclable polymers. Leading China manufacturers produce column guards from pure single-origin high-density polymers that are readily granulated and reprocessed at the end of their multi-year operational lifecycle.
From custom masterbatch blending to final dynamic pendulum testing, our manufacturing lines adhere to stringent technical process controls:
The historical approach to column safety relied purely on heavier structural steel. However, field data shows that immovable rigid steel transmits high shear force directly into the concrete floor, causing anchor failure and severe damage to forklift chassis and steering components.
Our research and development team has engineered a hybrid protection system that blends structural steel frame defense with dynamic multi-chamber polymer shock absorption:
Authoritative technical guidance compiled by senior warehouse safety engineers, helping procurement officers, safety directors, and logistics project managers navigate column guard selection, testing, and compliance.
Under EN 15512 and FEM 10.2.02, upright column protectors positioned at vulnerable corners must absorb a minimum kinetic energy impact of 400 Joules at a height between 100mm and 400mm, with zero dynamic transfer causing structural damage to the rack column. In high-velocity transit aisles, tier-one logistics operators specify protectors rated between 1,000 and 2,500 Joules to account for heavily laden reach trucks.
Floor-anchored steel guards offer rigid protection against severe forklift strikes, but they transmit shock directly into the concrete floor slab, often cracking the concrete or shearing anchor bolts. Polymer guards snap directly onto the upright post, absorbing shock elastically without damaging the floor slab or requiring drilling. High-traffic facilities often deploy a hybrid approach: steel barriers at high-speed aisle ends, and snap-on polymer guards inside intermediate picking aisles.
Cold-formed racking columns are thin-walled structural members under substantial vertical compressive load. According to EN 15635 (Steel Static Storage Systems - Application and Maintenance), a localized dent exceeding 3.0mm in depth along the column cross-section significantly alters the member's radius of gyration, reducing its buckling resistance by up to 50% and triggering a "Red Hazard" state requiring immediate unloading of the entire bay.
Standard polymers suffer from low-temperature embrittlement, causing them to shatter under sudden impact. Our cold-chain column protectors are molded using modified Medium and High-Density Polyethylene compounded with impact modifiers that maintain ductile elasticity and impact absorption down to -35°C, making them ideal for refrigerated and frozen food distribution centers.
Yes. Our engineering department designs tooling for universal teardrop uprights, slotted industrial columns, omega profiles, and European standard widths ranging from 75mm, 80mm, 90mm, 100mm, up to 130mm. We also produce custom-molded profiles and modular stackable sleeves to match proprietary racking dimensions worldwide.
Each production run undergoes calibrated pendulum impact testing simulating realistic vehicle collisions, tensile yield verification, environmental stress cracking resistance (ESCR) assessments, and accelerated UV-chamber weathering. Comprehensive Mill Test Certificates (MTC) and third-party inspection reports (TÜV, SGS) are provided with all international export shipments.
To reduce international shipping costs, our polymer column protectors are engineered with a tapered nesting geometry, allowing thousands of units to be densely nested inside 40ft High Cube containers. Steel guards are packaged using reinforced fumigated wooden pallets with corner edge-protectors to prevent freight abrasion and transit damage.
While an unprotected upright appears cheaper upfront, replacing a damaged rack column costs an estimated $1,200 to $2,500 per bay when factoring in crane jacks, labor, stock relocation, and warehouse disruption. By preventing column dents, preserving concrete floors, and resisting repeated fork glancing, certified protectors pay for themselves within the first one to two major impacts.
Shortlist technical parameters for engineering tenders, RFQ packages, and safety compliance audits.
| Model Series | Primary Material | Available Heights | Compatible Post Widths | Impact Dissipation | Typical Application |
|---|---|---|---|---|---|
| Series RCP-PolyWrap | Virgin Modified MDPE | 400mm / 600mm / 1000mm | 80mm – 100mm | 1,200 Joules | High-Density Selective Aisles |
| Series RCP-SteelGuard | Q235B Cold-Rolled Steel | 300mm / 400mm / 600mm | Universal Floor Fitment | 4,500 Joules (Yield) | Heavy Counterbalance Transit Lanes |
| Series RCP-BaseSnap | High-Impact PE Elastomer | 150mm (Base Collar) | Universal 6-Inch Flanges | 800 Joules | Low-Profile AGV / Pallet Jack Zones |
| Series RCP-EndAisle | Welded Tubular Ø114mm Steel | 500mm / 750mm | Dual-Bay Outer Frames | 12,000+ Joules | End-of-Row Forklift Turning Radii |
Connect with our technical engineers to receive structural CAD drawings, impact resistance test reports, customized mold specifications, and containerized export pricing for your facility.
