Product Description

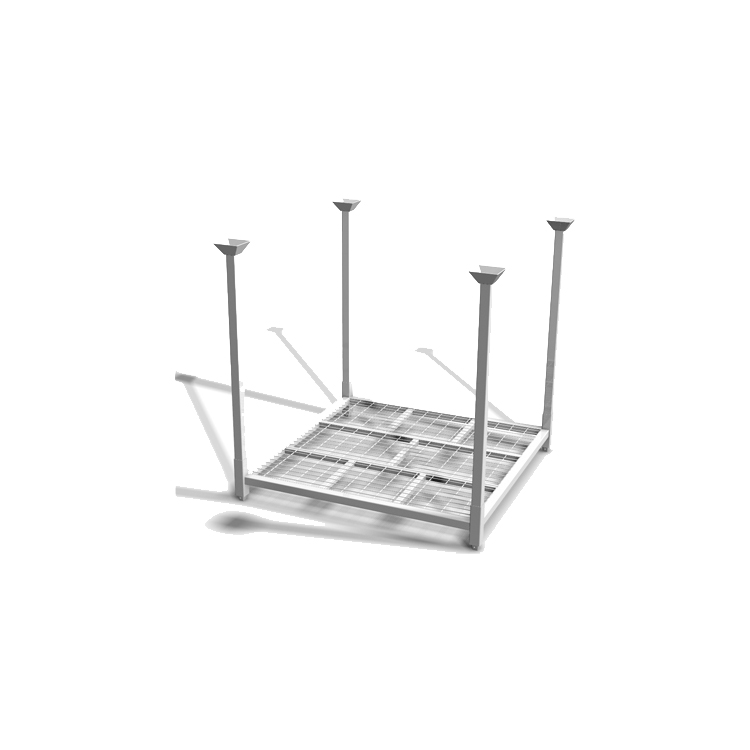

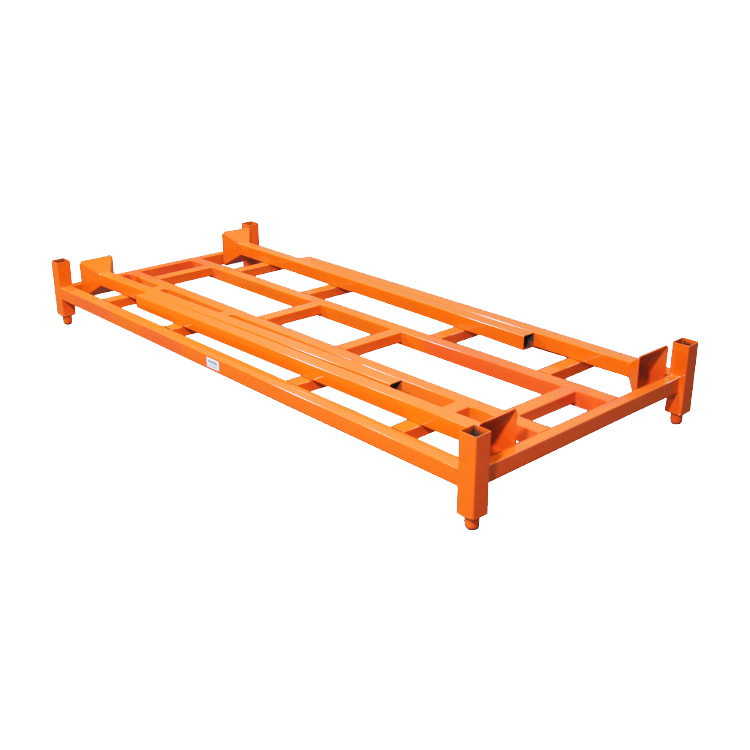

Stacking rack is mainly consist of base, four post, stacking bowl and stacking foot, often equipped with forklift hole, wire mesh, steel decking, or wooden panel.

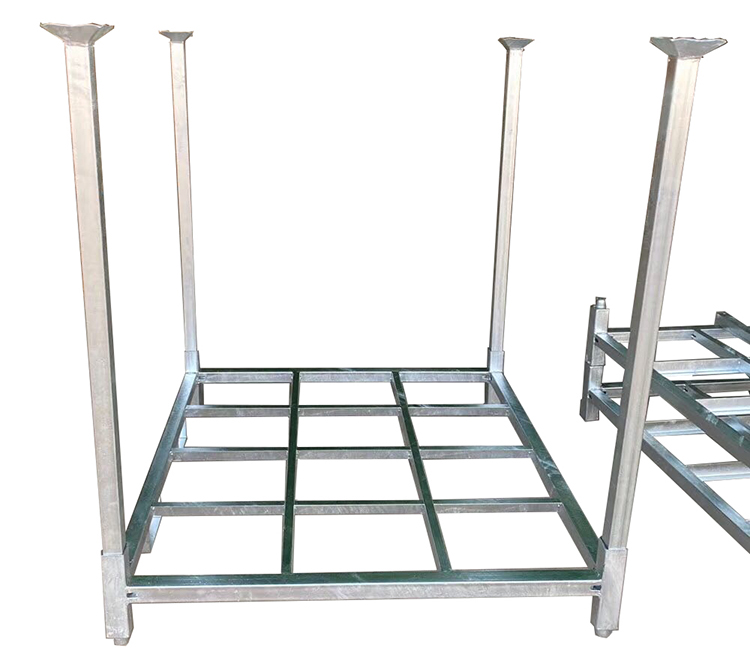

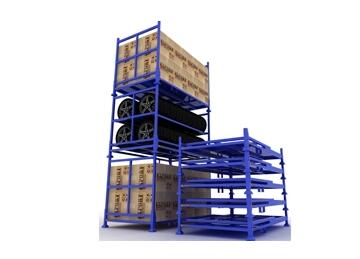

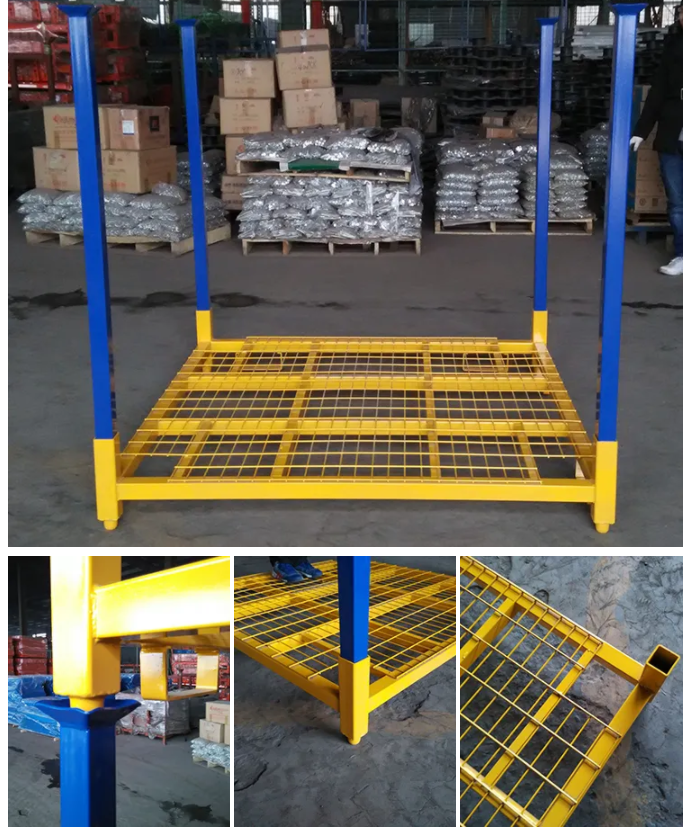

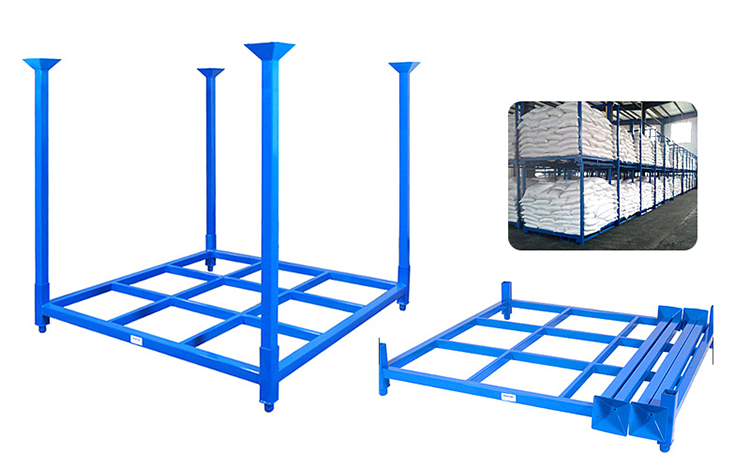

Feature
- It consists of four tubular posts, can stack 4-5 levels
- It can save space when unused
- It can be stacked and used like shelf
- Raw material use Q235B steel
Size Information
| Length |
Width |
Height |
Loading capacity |
| 500-2000mm |
500-2000mm |
700-2200mm |
500-2000kg per rack |
| Special size or loading capacity are also available |
| Main parts |
Base, posts, stacking bowl, stacking foot, forklift |
| Can be equipped with |
Wire mesh, steel decking, wooden panel |
| Type |

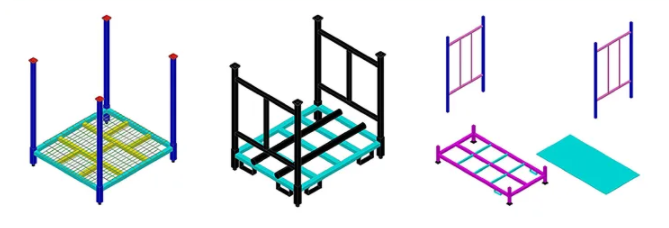

Welding type, Detachable type, Collapsible type |

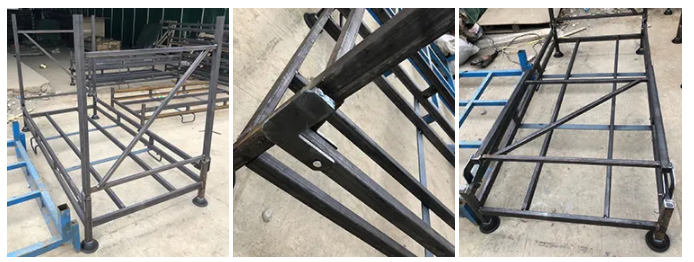

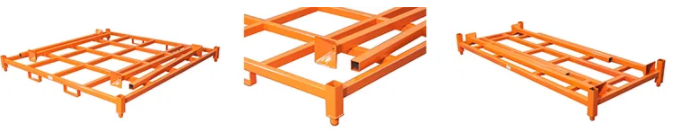

Details Images
Our Laboratory

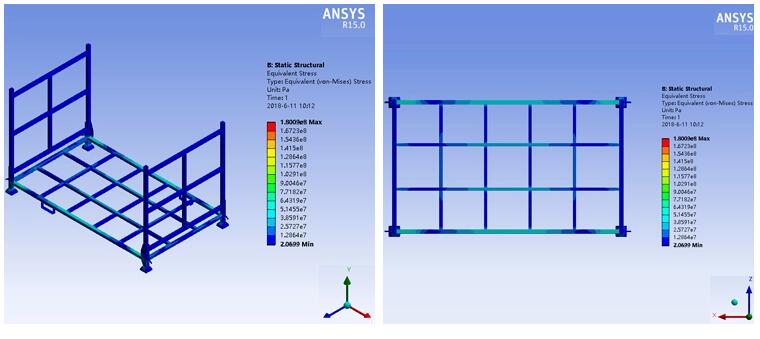

The bearing capacity of the base is 1.5 tons, and the maximum stress is 182Mpa, which is the stress concentration point. It is located at the weld joint between the support leg and the frame of the base. Most of the rest of the stress is no bigger than 40Mpa, and the allowable stress is less than 235Mpa.
The above figure shows that under the condition of four layers of foldable stacking rack, the stress of the bottom layer foldable stacking rack column is 140Mpa. The yield stress value of the material is less than 235Mpa.
Rack Usage

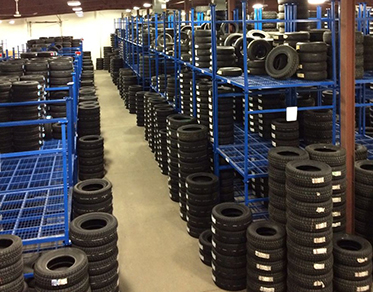

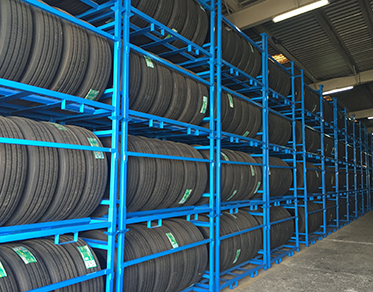

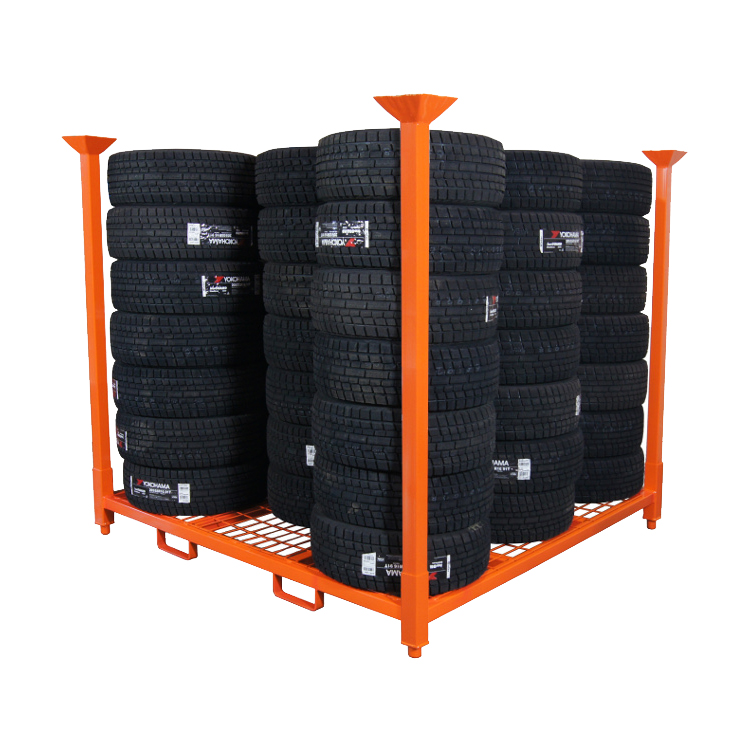

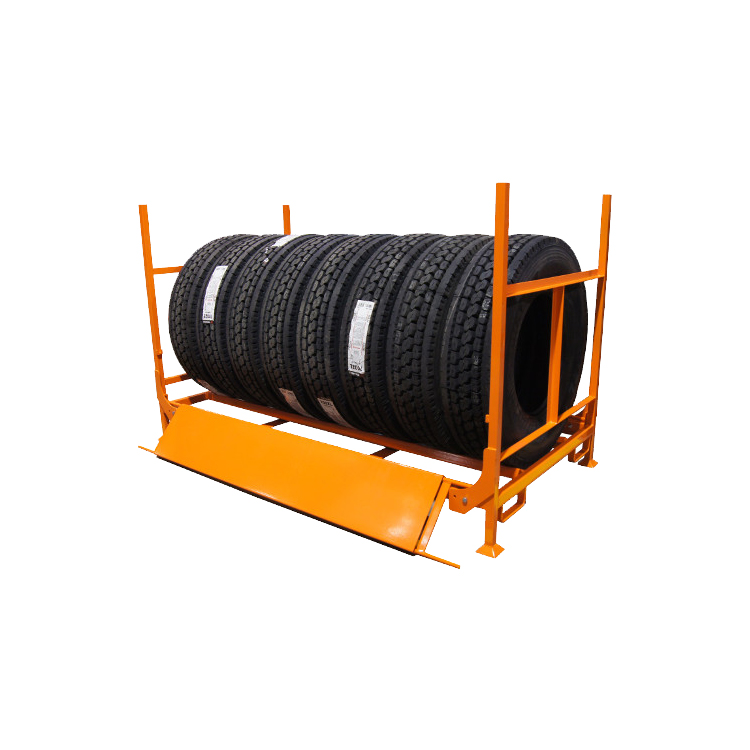

Tyre Stacking Rack
Widely used for tyre storage, we can according your tyre size and weight, design suitable solutions for clients.
Tyre Stacking Rack
Widely used for tyre storage, we can according your tyre size and weight, design suitable solutions for clients.

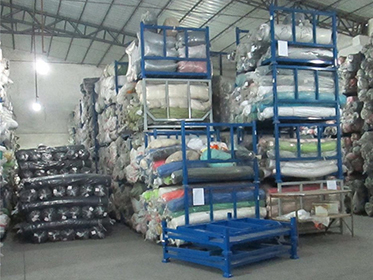

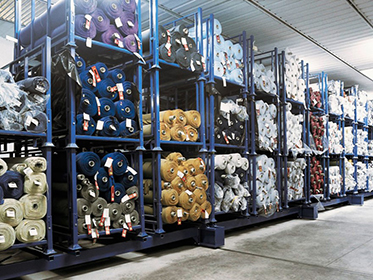

Fabric Roll Stacking Rack
Widely used for fabric roll storage, size can be custom for clients.
Fabric Roll Stacking Rack
Widely used for fabric roll storage, size can be custom for clients.

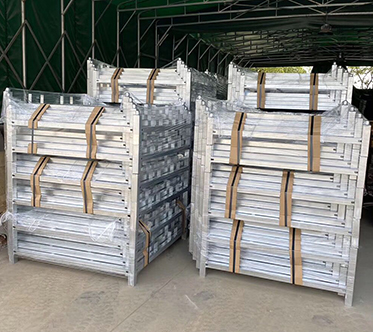

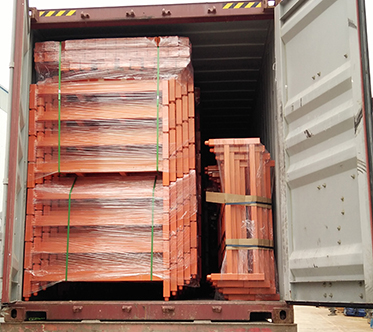

Product Packaging
Company Profile
Frequently Asked Questions
What are the main structural components of the stacking rack?
The stacking rack mainly consists of a base, four posts, stacking bowls, and stacking feet. Depending on operational needs, it can also be equipped with forklift entry holes, wire mesh decking, steel decking, or wooden panels.
What materials are used to ensure the durability of the racks?
All racks are manufactured using high-grade Q235B structural steel, providing excellent tensile strength, stability, and reliable performance under high loads.
Can these stacking racks be customized to non-standard sizes?
Yes, while our standard lengths and widths range from 500-2000mm and heights from 700-2200mm, we can provide fully customized dimensions and loading capacities based on your exact storage requirements.
How many layers can these racks safely stack when loaded?
Thanks to rigorous structural and stress engineering, our racks are verified to stack safely up to 4 to 5 levels high, whether under full or empty conditions.
What manufacturing types of stacking racks are available?

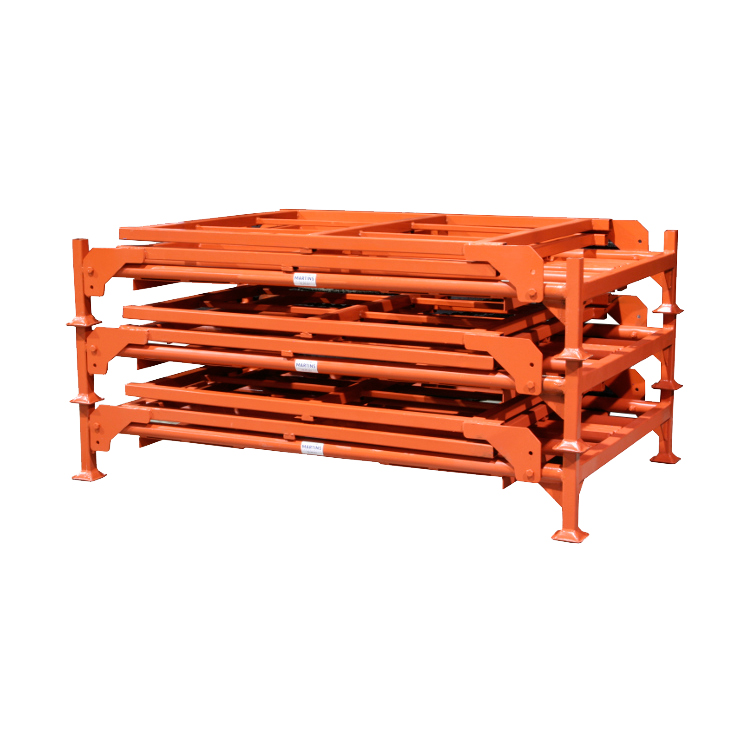

We supply three main structures to match your logistics space: Welding type (fixed), Detachable type (removable posts), and Collapsible/Foldable type for maximum storage savings when not in use.
What industries commonly use these stacking systems?
They are extensively used for warehouse storage solutions across automotive tyre facilities, fabric and textile roll management, and generalized material handling logistics.
