Optimizing Vertical Density, Unspooling Ergonomics, and Structural Safety in Modern Industrial Hubs
Greater Sydney is experiencing unprecedented expansion driven by major transport, energy, and commercial developments. Infrastructure projects such as the Western Sydney Aerotropolis, the expansion of Sydney Metro West, and massive grid modernizations across New South Wales require vast quantities of heavy-duty electrical conductors, fiber optic lines, and high-voltage transmission cables.
Managing high-density cable storage in key industrial precincts—including Eastern Creek, Wetherill Park, Botany, Smithfield, and Blacktown—demands specialized racking infrastructure. Standard pallet racking systems are structurally inadequate for concentrated cylindrical dynamic loads, creating severe workplace health and safety risks under Safe Work NSW guidelines.
As NSW transitions toward renewable power under the Electricity Infrastructure Roadmap, large-scale solar, wind, and battery energy storage system (BESS) projects across regional hubs rely on central logistics depositories in Sydney. Storage racks must facilitate both dense vertical warehousing and high-frequency, jam-free direct payout of thick copper and aluminum cables without unseating adjacent reels.

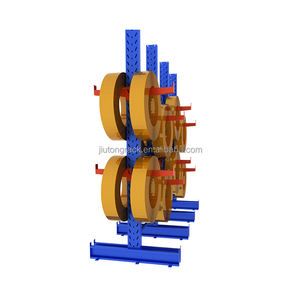

Our industrial cable drum racking systems are engineered in accordance with AS 4084-2012 (Steel Storage Racking) and AS/NZS 1170 (Structural Design Actions). Cable spools generate concentrated point loads along the horizontal axle supported by specialized cradles. Unlike uniform static load pallets, unspooling introduces rotational torque and kinetic force vectors.
Our heavy-duty upright frames feature cold-rolled high-tensile steel structural profiles, augmented by heavy-gauge horizontal axle brackets. Secure safety locking pins prevent accidental axle dislodgement during mechanical payoff, ensuring full compliance with Australian safety regulations.
Operational facilities located near Port Botany or coastal Sydney face elevated atmospheric salinity. We supply industrial cable reel racking with multi-layer surface protection: standard high-durability electrostatic thermosetting powder coating (RAL custom shades) for indoor warehouses, and hot-dip galvanizing complying with AS/NZS 4680 for harsh outdoor laydown yards.
Comprehensive technical benchmarks for facility managers, warehouse engineers, and procurement specialists.
| Racking Class / Model | Max Drum Diameter (mm) | Axle Capacity (Per Level) | Upright Frame Rating | Primary Application / Industry | Surface Finish Standard |
|---|---|---|---|---|---|

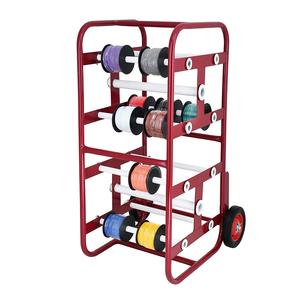

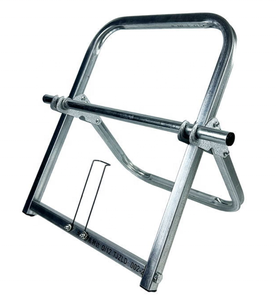

| Light-Duty Caddy Dispenser | 300 – 600 mm | 150 kg – 500 kg | Up to 1,500 kg | Telecom, Data Cable & Electrical Trades | Powder Coated / Bright Zinc |
| Medium-Duty Spool Rack | 600 – 1,200 mm | 800 kg – 2,000 kg | Up to 6,000 kg | E-commerce, Commercial Wholesalers | Epoxy Powder Coat (AS 4084) |
| Heavy-Duty Industrial Reel Rack | 1,200 – 2,600 mm | 2,500 kg – 6,000 kg | Up to 18,000 kg | Power Utilities, Heavy Mining, Metro Rail | Heavy Epoxy or Hot-Dip Galvanized |
| Extra Heavy-Duty Custom Cradle | 2,600 – 3,500+ mm | 6,000 kg – 12,000 kg | Engineered per Project | Offshore Cable, Grid Transmission (NSW REZ) | AS/NZS 4680 Hot-Dip Galvanized |
Direct-from-manufacturer structural engineering, rigorous ISO-backed quality control, and seamless Sydney logistics delivery.
We operate modern roll-forming and steel fabrication lines, controlling every step from raw Q235B/Q355B structural steel processing to final load testing. Our engineering team designs customized cradle hooks, detachable spool axles, and heavy-duty retention saddles tailored specifically to your exact cable drum dimensions and mechanical handling equipment (reach trucks, overhead cranes, or specialized forklifts).
Backed by ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management certifications, every batch of cable reel racking undergoes structural stress testing and weld integrity inspection. We provide full structural layout consultation, CAD floor plan optimization, certified load documentation, and direct delivery options straight to Sydney industrial yards with complete safe assembly guides.
Addressing compliance, custom manufacturing, logistics, and installation considerations for NSW operations.
Send us your site layout dimensions, cable reel weights, and drum diameters. Our structural engineering team will provide a comprehensive CAD layout design and factory-direct price quotation within 24 hours.
